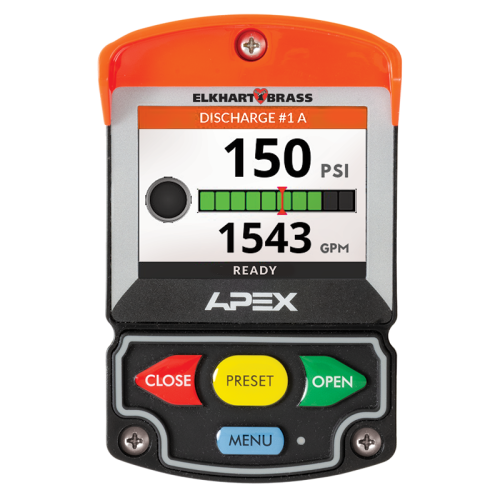

APEX Valve Controllers

Combine customization capabilities with space saving design, add tactile keypad buttons and large, easy-to-read graphics and the result is an innovative new valve controller. APEX™ provides great benefits to OEMs as well as end users!

The design and versatility of the APEX Valve allow an OEM to save valuable pump panel space and adapt the controller to any application, while offering only one version of actuator. It takes the guesswork out of the ordering process. Operators will appreciate the large screen with high resolution graphics, while additional features including the adjustable “Target Pressure” indicator and daytime/nighttime screen modes deliver functionality never seen before in a valve controller. The APEX-S offers open/close and preset functions in a compact controller with 10-segment position indicating LEDs instead of the LCD screen.

Key Features

Oversized buttons for easy gloved-hand operation
Visors available in NFPA color options
Customizable to match the color and name of discharge
User programmable preset for one-touch valve positioning
10-segment position indicating LEDs

EXM2 Controllers & Accessories

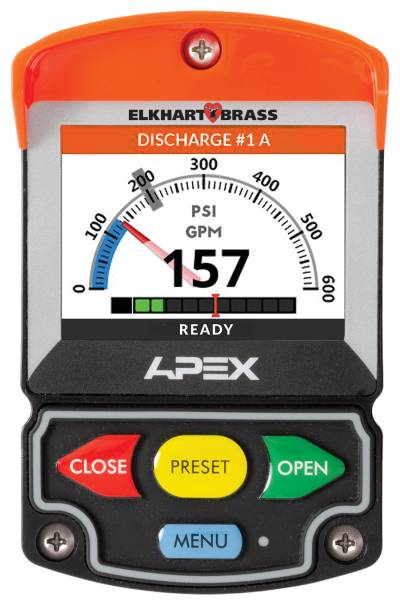

Apex-300 Valve Control with Pressure and Flow

Large, impact-resistant 3.5″ (89 mm) LCD screen for unmatched durability
Pressure readout in analog gauge or numeric style readout
Critical data in large, easy-to-read format
Visor available in NFPA color options
Customizable to match the color and name of discharge
User programmable preset for one-touch valve positioning
Oversized buttons for easy gloved-hand operation
Space-saving design at only 3.75″ (95 mm) wide

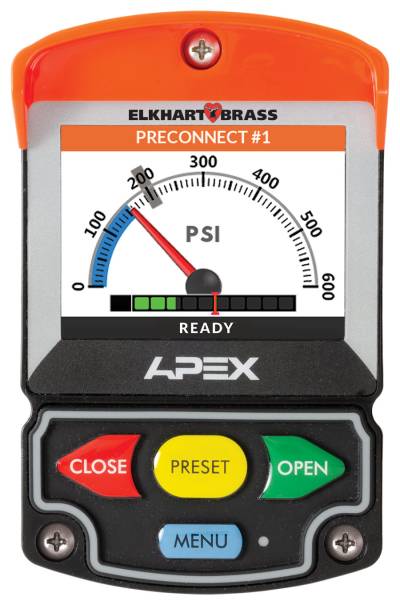

Apex-200 Valve Control with Pressure

Select from a preloaded menu or type in your own description
Programmable pressure target indicator
Large crystal clear sunlight readable display
MENU button for setup, calibration and diagnostics
Large, impact-resistant 3.5″ (89 mm) LCD screen for unmatched durability
Pressure readout in analog gauge or numeric style readout

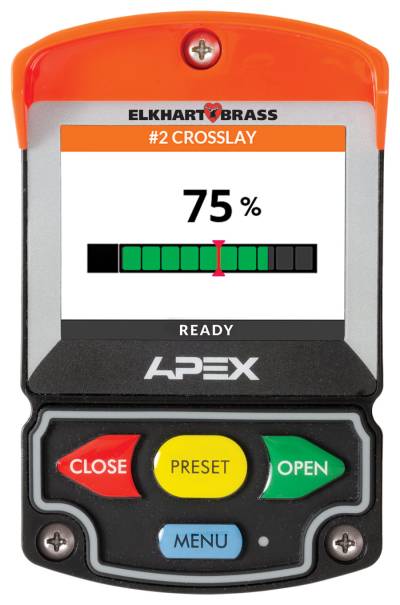

Apex-100 Valve Control

Select from a preloaded menu or type in your own description
Programmable pressure target indicator
Large crystal clear sunlight readable display
MENU button for setup, calibration and diagnostics
Large, impact-resistant 3.5″ (89 mm) LCD screen for unmatched durability
Pressure readout in analog gauge or numeric style readout

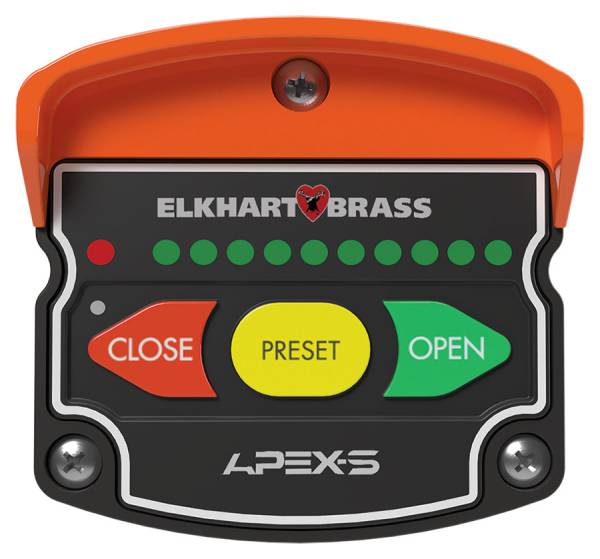

Apex-S Compact Valve Control

10-segment position indicating LEDs

System Overview

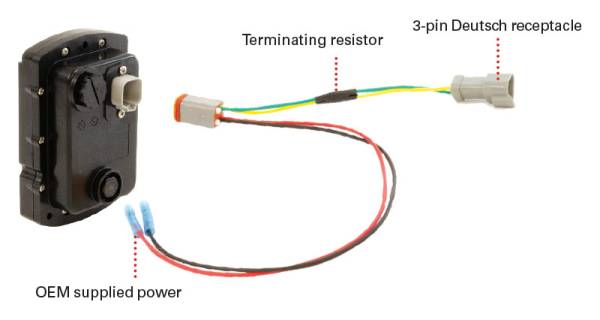

Choose Your APEX

Note: Diagram represents single APEX controller to single valve configuration. For multiple controllers and network options, please contact Elkhart Brass Customer Service.

Select an Optional Harness

Extension harness available in 2′ (.6 m), 10′ (3 m), 15′ (4.5 m), 20′ (6 m), 30′ (9 m) and 40′ (12 m)

Choose Valve and Actuator

Unibody valve shown with E14X actuator

Add Sensors as Required

Flow and pressure sensors

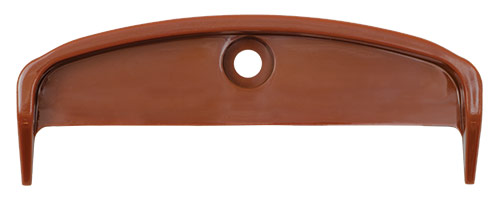

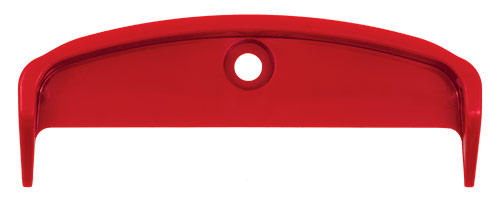

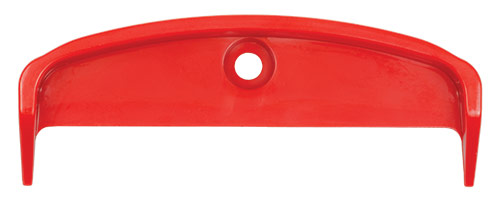

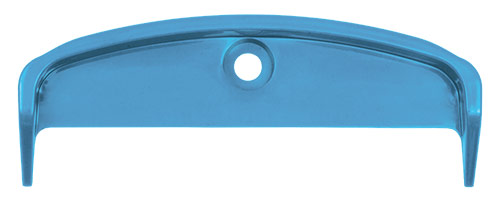

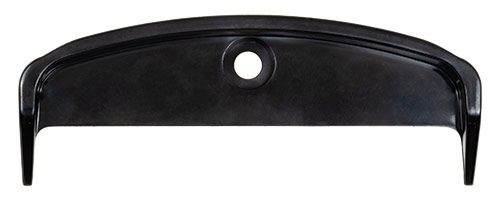

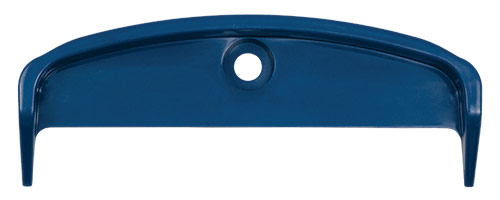

Visor Color Options
