The Position Display provides instant feedback to the operator on the monitor’s current position utilizing the signal from the monitor’s integrated position sensors.

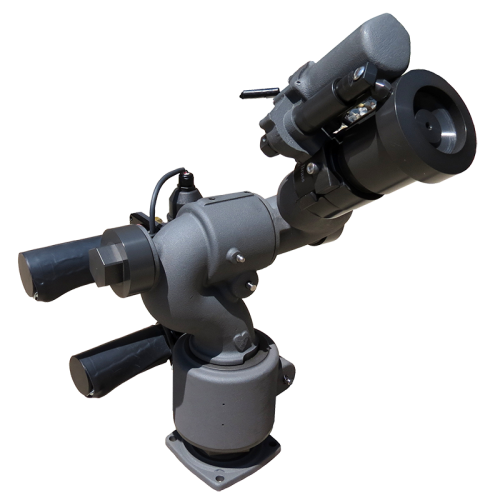

More Power. Less Water. Designed to meet U.S. Military standards, the compact, ultra high pressure Sidewinder® EXM2 UHP is now being offered for other applications. The Sidewinder UHP EXM2 is an Ultra High Pressure version of the Sidewinder EXM2. Utilizing the EXM2™ operating platform, the 7161X2 Series features built-in Wi-Fi for simple programming and setup. The EXM2 controls, both wired and wireless, provide improved performance and operator control. With flow rates up to 300 gpm (1140 LPM), the 7161 UHP meets the demands of ultra high pressure firefighting.
Recommended Controllers
See EXM2 Monitors for the complete line of EXM2 input controllers.
The Position Display provides instant feedback to the operator on the monitor’s current position utilizing the signal from the monitor’s integrated position sensors.
The joystick controller is designed to be surface mounted in the vehicle cab, providing convenient and intuitive control of the monitor. Containing all of the EXM2 monitor controls, the joystick utilizes proportional speed control for precise positioning of the water stream. Operate a valve using the joystick trigger or the OPEN/CLOSE buttons on the mounting plate. Integrating CANbus within the joystick design eliminates the need for an external module, simplifying installation and programming.
The IP67 rated wireless remote control includes everything needed to operate a monitor, nozzle and optional Unibody valve from a safe location. The docking station with built-in induction charging system eliminates the need for replaceable batteries. The wireless controller comes pre-configured to communicate via RF to the Gateway Module. The module, with an external antenna, can then be mounted in a location convenient to the apparatus builder. The Gateway connects via CANbus harnesses directly to the monitor.
Designed to be mounted on a panel, the controller is hardwired directly to the monitor via CANbus. Compatible with 12 or 24VDC systems and rated to IP67.
