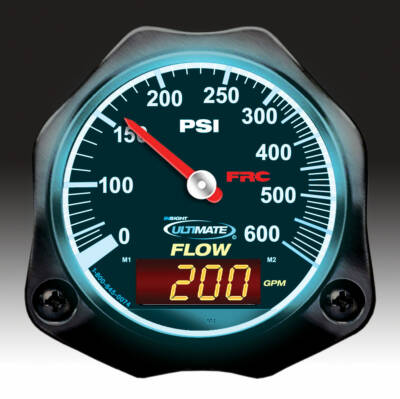

Optional Backlighting

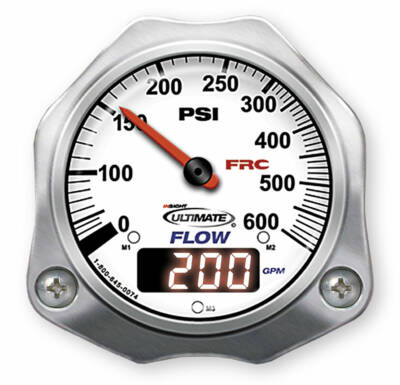

Available on Insight Ultimate — Optional Backlighting Available on Insight Ultimate

Remote Displays, Summing and Accumulating

Pressure Gets Water to the Fire, Water Flow Puts Fires Out

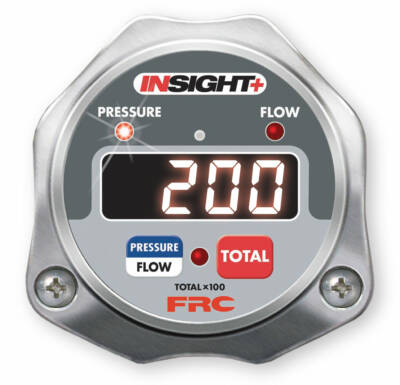

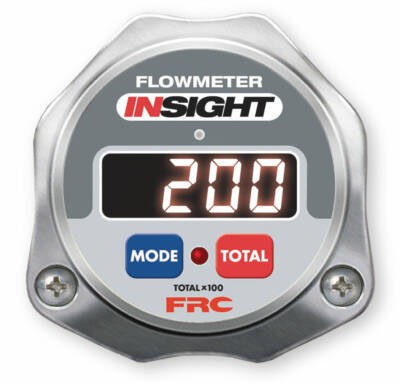

Insight

Getting the right flow on the fire is critical. Forget using rule-of-thumb based calculations based on variables such as pressure readings, hose, size, length and friction loss. Flowmeters give an exact and immediate measure of the water being used.

INSIGHT series displays are specifically designed for use on fire apparatus. These hi-tech indicating devices are compact and built rugged to withstand the conditions found at fire scenes today. INSIGHT displays are used by the largest fire departments in the world and have a proven track record.

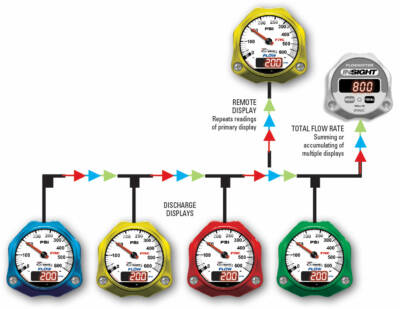

Remote Displays, Summing and Accumulating

All FRC Insight series displays are designed to share information over the FRC datalink. This technology allows for remote displays, the display of actual flow rate through multiple discharges (summing) and the total flow through multiple discharges (accumulating).

Key Features

Easy Calibration from Front of meter.
Simplifies Installation.
Brightest Readout Possible is Easy to See Under All Conditions.
NFPA Colored Bezels Help Eliminate Mistakes.
FRC Datalink Allows for Remote Displays.
Photo Sensor Detects Ambient Light so the Unit Automatically Adjusts the LED Intensity for Day or Night Operation.
Expanded 50 psi to 250 psi (3.5 BAR to 17 BAR) scale for more precise pressure readings in the most commonly used ranges.

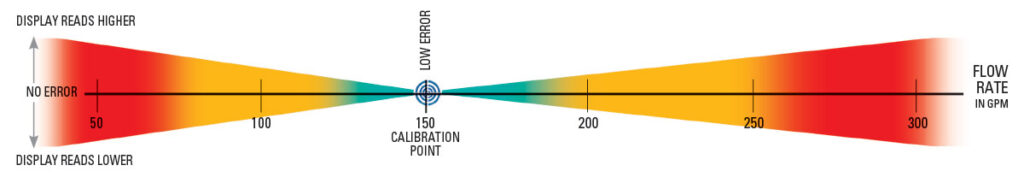

Single Point Calibration

When calibrating at a single flow rate, plumbing conditions may cause turbulent, non-linear flow producing inaccurate readings away from the calibration point.

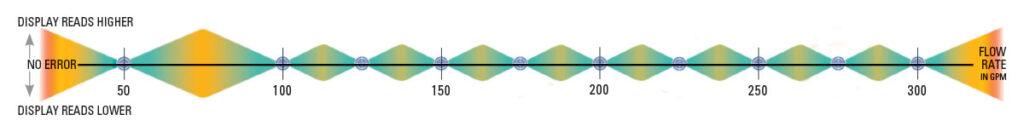

Multiple Point Calibration

When plumbing conditions are not ideal, calibrate at up to TEN flow rates to greatly increase accuracy and reduce measurement errors.

Calibration Point

VERY ACCURATE, low chance of error in the flow rate reading on the display

Close to the Calibration Point

Low chance of error in the flow rate reading on the display

Away from the Calibration Point

Higher chance of error in the flow rate reading on the display

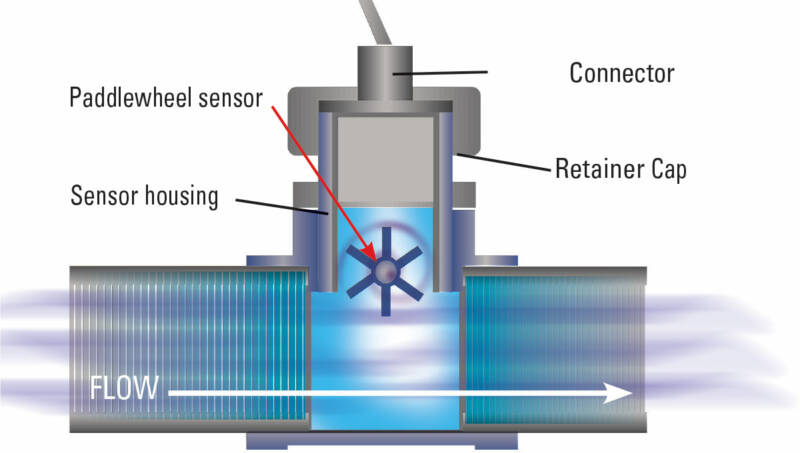

Paddlewheel Flow Sensor

The Paddlewheel Flow Sensor is mounted in the pipe so that only the paddles extend into the flow. The paddlewheel is free spinning, resistant to damage from debris in the water and presents no impedance to flow. The sensor generates electrical pulses that are proportional to the rate of flow. This flow sensor is dependable and virtually maintenance-free.

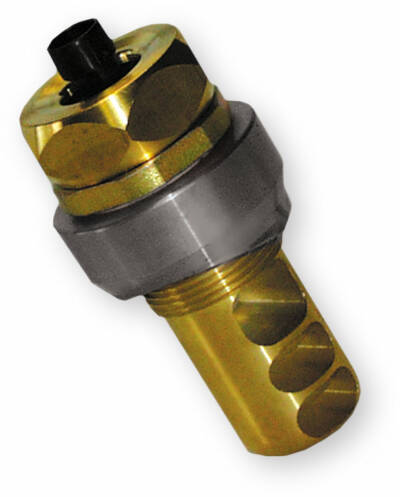

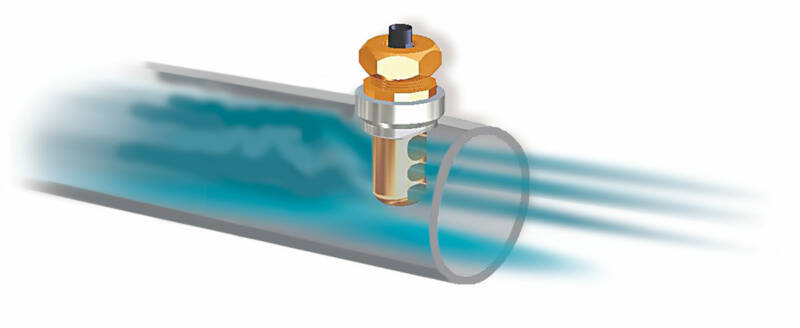

Flow Conditioner

Piping can often cause water turbulence, creating inaccurate readings. The FRC Flow Conditioner© is specially designed to straighten water flow, reducing local turbulence for more accurate readings. To achieve best results, choose the proper flow sensor location. Plumbing that distorts smooth water flow such as elbows, expansions or valves need to be considered when choosing a flow sensor location. Refer to FRC flowmeter manuals for mounting location recommendations.

Flow Sensor Mounting Options

Pipe Tee fittings

Pipe Tee fittings are NPT threaded, ranging from 1″ (25.5 mm) through 4″ (101.6 mm) for applications where standard pipe fittings are the easiest solution.

Custom Adapters

Custom Adapters are available for discharge applications where a spacer is the only thing that will fit.

Weldment fittings

Weldment fittings are available in aluminum, steel, and stainless steel.

Saddle Clamps

Saddle Clamps are the standard mountings for 2″ (50.8 mm) through 6″ (152.4 mm) pipe sizes.
