Two Options

Spectra Surface Mount Options

Key Features

Rubber gasket protects vehicle surface
Spot LEDs provide long distance illumination
Row of flood LEDs (top & bottom) illuminate the work area
Slimmest profile surface mount - only 1 3/4"
Unique lens designated to illuminate area directly below lamphead

15,000 Lumens of Bright Light

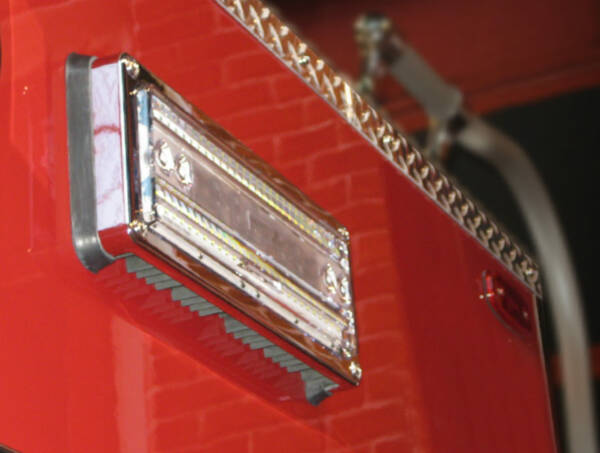

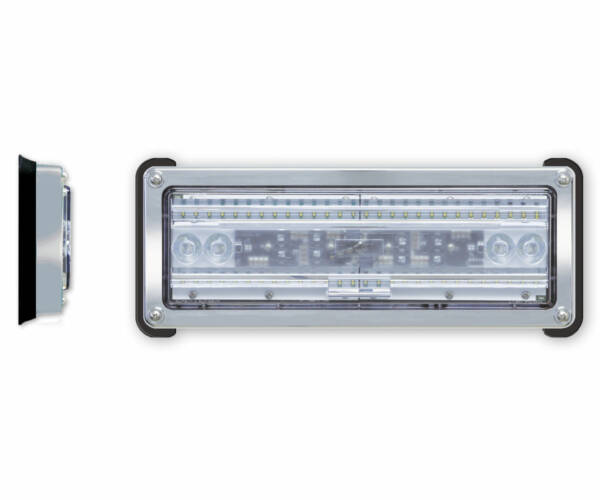

Spectra Surface Mount

SPECTRA Surface Mount has an extremely low profile extending less than 1-3/4″ from the panel.

Key Features

Surface mount LED lamphead generates a combined flood and spot light pattern
Slim body design depth of only 1 3/4" keeps lamphead closer to vehicle
Surface mount is easier and faster to install
Available in 12/24 VDC or 120/240 VAC
AC surface mount model SPA260 requires 6 3/8" w x 4 11/16" h cut-out.

Voltage	Certifications	Rating	Model	Amperage	Raw Lumens	Effective Lumens
12V/24V		IP68	Q15	13.9/6.9A	15,000	13,500
120V		IP68	K15*	1.4A	15,000	13,500
240V		IP68	J15*	0.7A	15,000	13,500

20,000 Lumens of Ultra Bright Light to Improve Vehicle Performance

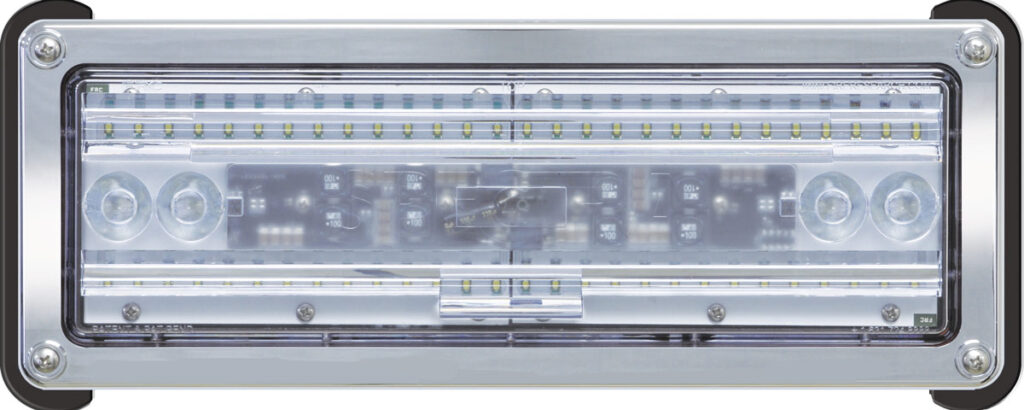

Spectra Max Surface Mount

Key Features

8.3	Certifications	Rating	Model	Amperage	Lumens
12V/24V		IP68	Q20	18.3A/12V – 9.2A/24V	20,000 lumens
120V		IP68	K20	1.4A	20,000 lumens
240V		IP68	J20	0.7A	20,000 lumens
