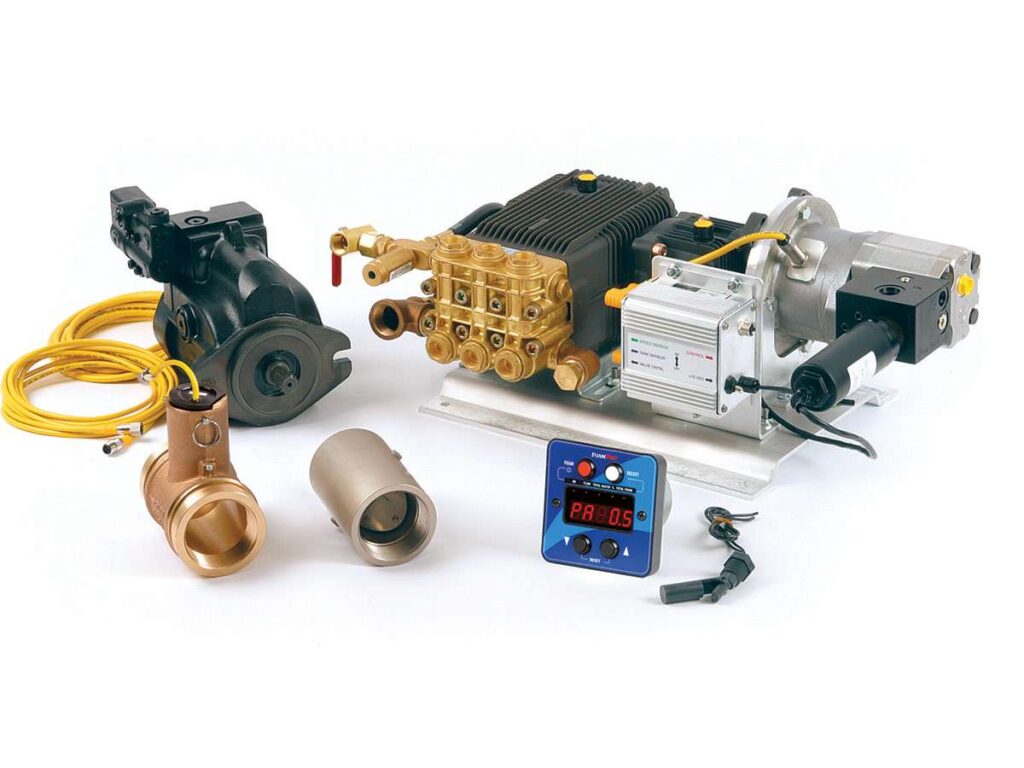

3012 Series Hydraulic Single-Point Injection

Greater Class A and Class B firefighting power is at your fingertips with the FoamPro Model 3012 proportioner. This versatile system delivers unmatched, supercharged performance with concentrate flow from 0.1 to 12.0 gpm (.38 to 45.0 LPM) at 0-400 psi (0-28 BAR), all from a single pump. High drafting capabilities allow off-board pickup for foam operations or tank refill, which is crucial for higher flow demands or when changing concentrates. Unlike other pump designs that may pause in flow during operation, FoamPro’s triplex plungers are timed to discharge one after the other delivering smooth, continuous injection. The hydraulic pump drive and microprocessor control technology delivers extremely accurate concentrate injection from minimum flow to full capacity. The system includes the same industry-proven, ultra-bright LED digital display/control module used on FoamPro 2000 series proportioning systems.
