Details

Marine

Elkhart Brass marine handline nozzles are designed for use in marine firefighting applications. These nozzles can stand up to aggressive marine environments, utilize military grade components, and are constructed of marine grade brass. They are suitable for use with AFFF foam for the shipping industry, refineries, offshore rigs, and military applications. Many of them meet the stringent performance requirements of the U. S. Navy and/or U. S. Coast Guard, and are FM Approved.

Key Features

  • 85 brass construction with a lower level of zinc for outstanding resistance to corrosion
  • Heavy-duty manganese/bronze horseshoe shutoff handle
  • Constant flow rate from straight steam to wide fog
  • Acetal ball with self-adjusting UHMWPE seat
  • Flush without shutting down
View Documents

Selectable Flow Marine Nozzles

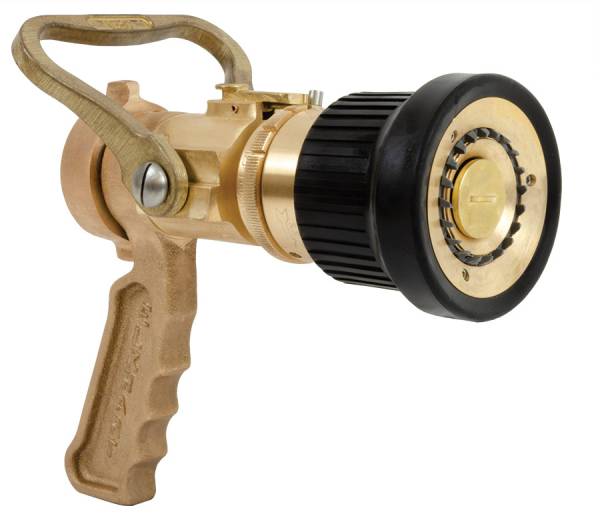

SFL-BG
  • Pistol Grip
SFL-B
  • Flow Rates: 40, 60, 95, and 125 gpm @ 100 psi (150, 230, 360 and 475 LPM @ 7 BAR)1.5″ inlet

Fixed Flow Marine Nozzles

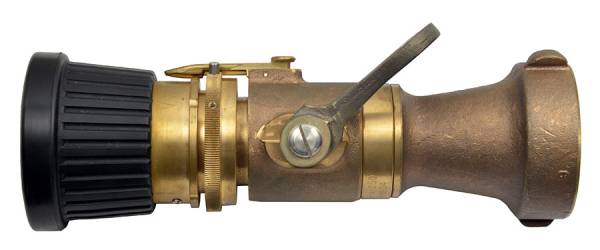

DSF-N Marine Handline Nozzle

The Elkhart Brass DSF-N marine handline nozzle is a constant flow, rugged brass handline nozzle designed for quick deployment. The DSF-N is easy to operate and provides straight/jet stream, narrow fog and wide fog stream patterns.

  • 250 gpm @ 100 psi (950 LPM @ 7 BAR)
  • 2.5″ inlet
  • Complies with Mil-N-24408E Standard
SFL-GCG-95 Marine Handline Nozzle
  • Pistol Grip
  • FM Approved
  • U. S. Coast Guard Approved

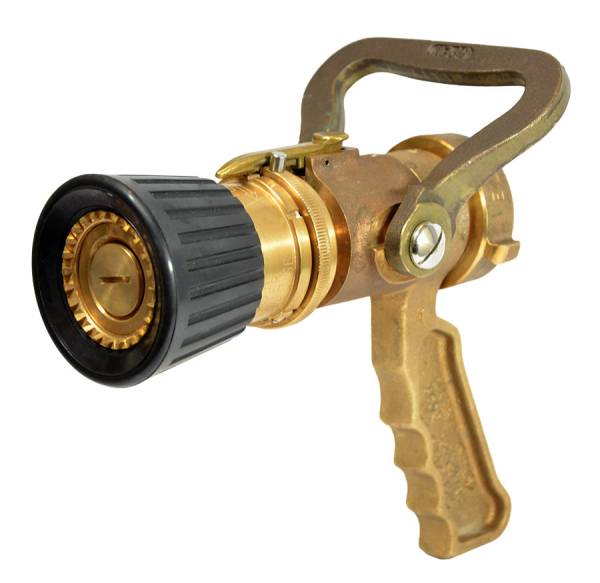

SFL-CG-95 Marine Handline Nozzle

The US Coast Guard approved Elkhart Brass SFL-CG-95 marine handline nozzle is a constant flow rugged brass handline nozzle designed for quick deployment. The SFL-CG-95 is easy to operate and provides straight/jet stream, narrow fog and wide fog stream patterns.

  • 95 gpm @ 100 psi (360 LPM @ 7 BAR)
  • 1.5″ inlet
  • FM Approved
  • U. S. Coast Guard Approved
SFL-GN Marine Handline Nozzle
  • Pistol Grip
  • Complies with Mil-N-24408E Standard

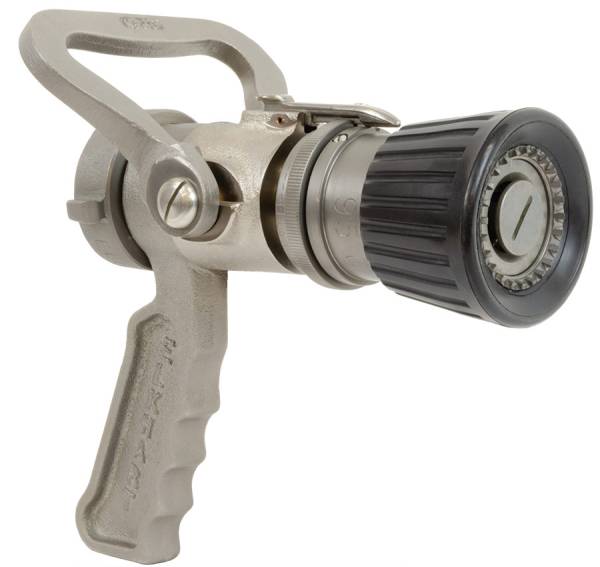

SFL-GN-SPL

The Elkhart Brass SFL-GN-SPL handline nozzle is a constant flow, rugged brass handline nozzle designed for use in the harshest environments with an electroless nickel plated coating. It is easy to operate and provides straight/jet stream, narrow fog and wide fog stream patterns.

  • 95 gpm @ 100 psi (360 LPM @ 7 BAR)
  • 1.5″ inlet
  • Pistol Grip
  • Electroless Nickel Plated
  • FM Approved
