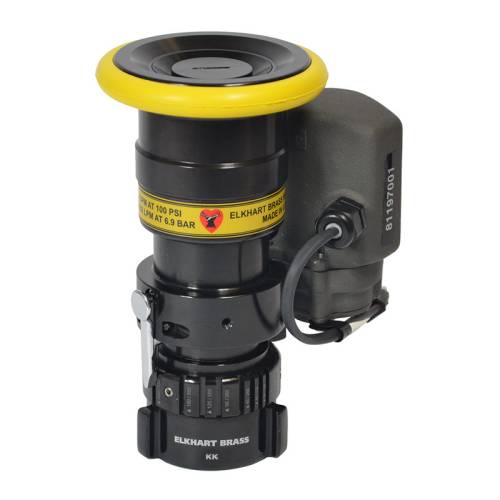

6000 Series Master Stream Nozzle

The 6000 Series is a line of selectable flow, electrically actuated Master Stream Nozzles featuring an ultra-wide flow range with a locking flow-selector ring. Useful in many applications, the 6000 Series was specifically designed for optimal performance when paired with the Sidewinder EXM2 monitor

Key Features

Aluminum Models

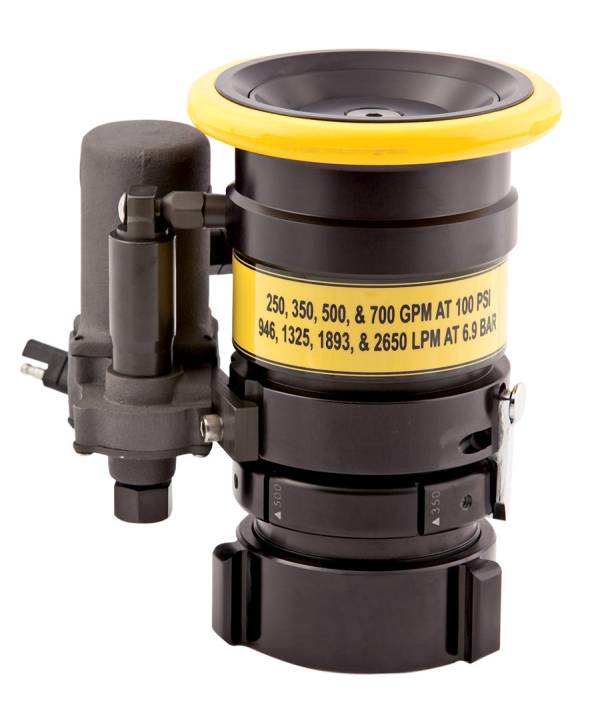

Model 6000-700E (D)

Selectable flow rates:
250-350-500-700 gpm @ 100 psi (950-1330-1900-2650 LPM @ 7 BAR)
2.5″ female inlet
Deutsch or SAE wiring connections available

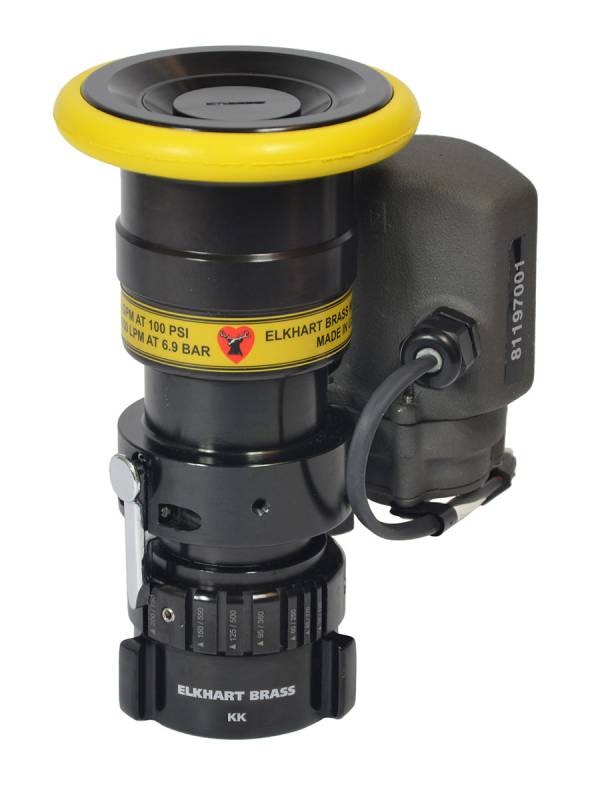

Model 6000-200E (D)

Selectable flow rates:
15-30-45-95-125-150-200 gpm @ 100 psi (60-115-170-360-475-570-750 LPM @ 7 BAR)
Specify 1.5″ or 2.5″ female inlet
Deutsch or SAE wiring connections available
