Fixed Flow Handline Nozzles

The choice for fixed flow fog nozzles, the Chief XD® is an absolute workhorse designed for a lifetime of service. Available in a variety of flow rates and pressures down to 50 psi (3.5 BAR).

Key Features

Chief XD Tips

High-Range 1.5″ Rigid Inlet

Flow Rates:

85 gpm @ 50 psi
(700 LPM @ 3.5 BAR)
250 gpm @ 50 psi
(950 LPM @ 3.5 BAR)
265 gpm @ 50 psi
(1000 LPM @ 3.5 BAR)
210 gpm @ 50 psi
(795 LPM @ 3.5 BAR)

250 gpm @ 75 psi
(950 LPM @ 5 BAR)
300 gpm @ 75 psi
(1140 LPM @ 5 BAR)
250 gpm @ 100 psi
(950 LPM @ 7 BAR)

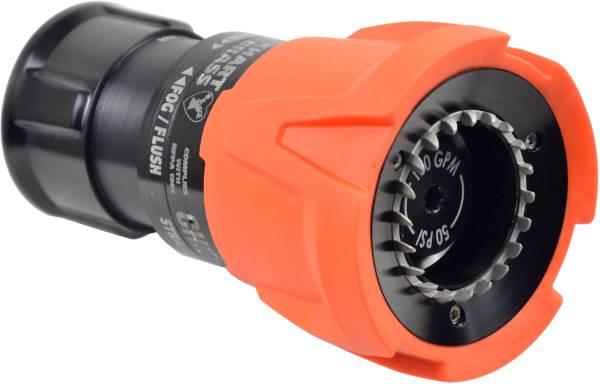

Mid-Range 1.5″ Rigid Inlet

Flow Rates:

150 gpm @ 50 psi
(570 LPM @ 3.5 BAR)
160 gpm @ 50 psi
(600 LPM @ 3.5 BAR)
175 gpm @ 50 psi
(660 LPM @ 3.5 BAR)
125 gpm @ 75 psi
(475 LPM @ 5 BAR)
150 gpm @ 75 psi
(570 LPM @ 5 BAR)
175 gpm @ 75 psi
(660 LPM @ 5 BAR)

200 gpm @ 75 psi
(750 LPM @ 5 BAR)
185 gpm @ 75 psi
(700 LPM @ 5 BAR)
95 gpm @ 100 psi
(360 LPM @ 7 BAR)
125 gpm @ 100 psi
(475 LPM @ 7 BAR)
150 gpm @ 100 psi
(570 LPM @ 7 BAR)
175 gpm @ 100 psi
(660 LPM @ 7 BAR)

Chief XD Nozzles

Available with Optional Pistol Grip

High-Range 2.5″ Free Swivel Inlet/1-3/8″ Waterway

Flow Rates:

185 gpm @ 50 psi
(700 LPM @ 3.5 BAR)
210 gpm @ 50 psi
(795 LPM @ 3.5 BAR)
250 gpm @ 50 psi
(950 LPM @ 3.5 BAR)
265 gpm @ 50 psi
(1000 LPM @ 3.5 BAR)

250 gpm @ 75 psi
(950 LPM @ 5 BAR)
300 gpm @ 75 psi
(1140 LPM @ 5 BAR)
250 gpm @ 100 psi
(950 LPM @ 7 BAR)

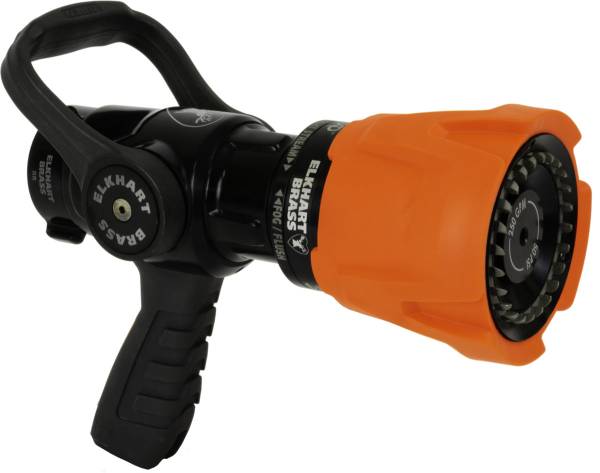

High-Range 1.5″ Free Swivel Inlet/1-3/8″ Waterway

Flow Rates:

185 gpm @ 50 psi
(700 LPM @ 3.5 BAR)
210 gpm @ 50 psi
(795 LPM @ 3.5 BAR)
250 gpm @ 50 psi
(950 LPM @ 3.5 BAR)
265 gpm @ 50 psi
(1000 LPM @ 3.5 BAR)

250 gpm @ 75 psi
(950 LPM @ 5 BAR)
300 gpm @ 75 psi
(1140 LPM @ 5 BAR)
250 gpm @ 100 psi
(950 LPM @ 7 BAR)

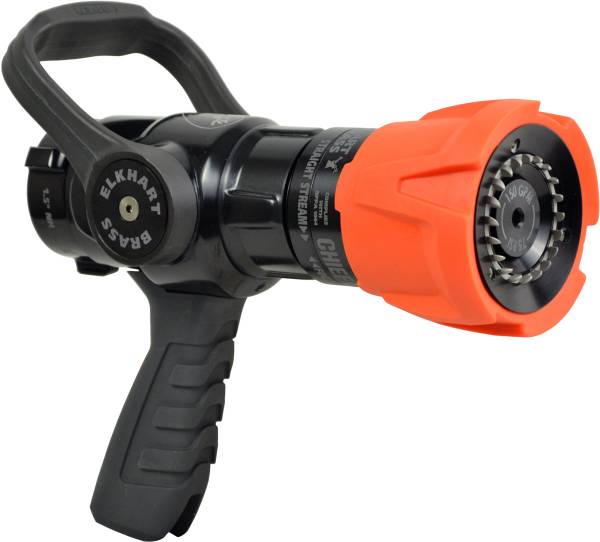

Mid-Range 1.5″ Free Swivel Inlet/1-3/8″ Waterway

Flow Rates:

150 gpm @ 50 psi
(570 LPM @ 3.5 BAR)
160 gpm @ 50 psi
(600 LPM @ 3.5 BAR)
175 gpm @ 50 psi
(660 LPM @ 3.5 BAR)
125 gpm @ 75 psi
(475 LPM @ 5 BAR)
150 gpm @ 75 psi
(570 LPM @ 5 BAR
185 gpm @ 75 psi
(700 LPM @ 5 BAR)

175 gpm @ 75 psi
(660 LPM @ 5 BAR)
200 gpm @ 75 psi
(750 LPM @ 5 BAR)
95 gpm @ 100 psi
(360 LPM @ 7 BAR)
125 gpm @ 100 psi
(475 LPM @ 7 BAR)
150 gpm @ 100 psi
(570 LPM @ 7 BAR)
175 gpm @ 100 psi
(660 LPM @ 7 BAR)

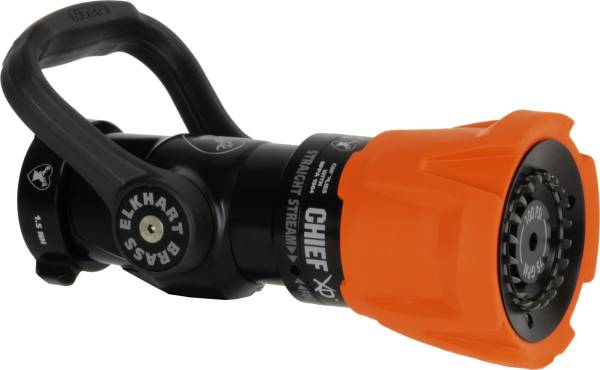

Mid/Low-Range 1.5″ Free Swivel Inlet/1.0″ Waterway

Flow Rates:

125 gpm @ 75 psi
(475 LPM @ 5 BAR)
60 gpm @ 100 psi
(230 LPM @ 7 BAR)
75 gpm @ 100 psi
(300 LPM @ 7 BAR)
95 gpm @ 100 psi
(360 LPM @ 7 BAR)
125 gpm @ 100 psi
(475 LPM @ 7 BAR)
150 gpm @ 100 psi
(570 LPM @ 7 BAR)

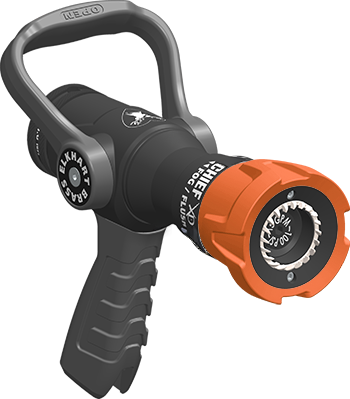

Low-Range 1.0″ Free Swivel Inlet/1.0″ Waterway

Flow Rates:

15 gpm @ 100 psi
(60 LPM @ 7 BAR)
30 gpm @ 100 psi
(115 LPM @ 7 BAR)
45 gpm @ 100 psi
(170 LPM @ 7 BAR)
60 gpm @ 100 psi
(230 LPM @ 7 BAR)

FOG NOZZLE XD COLORS

Choose bumper color, bale insert, and pistol grip insert color (orange is standard on Chief XD, yellow is standard on Select-O-Matic XD, and red is standard on Phantom XD)

Orange

Green

Grey

Glow

Blue

Black

Yellow

White

Tan

Red

Purple

Pink

The Configurator

Elkhart Brass has engineered and designed with simple, trouble-free configuration, installation, operation and service in mind. Simply choose the options to suit your needs. It’s that simple.

Product Videos

Custom Laser Etching

Teeth

Choose from spinning stainless steel metal or fixed molded urethane teeth.

Inlet Threads
