Hydro-Foam Self-Educting Nozzles

The Elkhart Brass Hydro-Foam® self-educting nozzle design enables these products to flow foam solution without the need for special foam mixing equipment. The design of the Elkhart Brass Hydro-Foam nozzle provides the flexibility and reliability required for applying foam solution.

Key Features

Built-in metering device accurately proportions foam at the selected rate
Suitable for Class A and Class B foams including AFFF and fluoroprotein foam concentrates
Suitable for use with fluorine free foams
Pattern easily changed under flowing conditions from straight stream to 90° fog

Aluminum Models

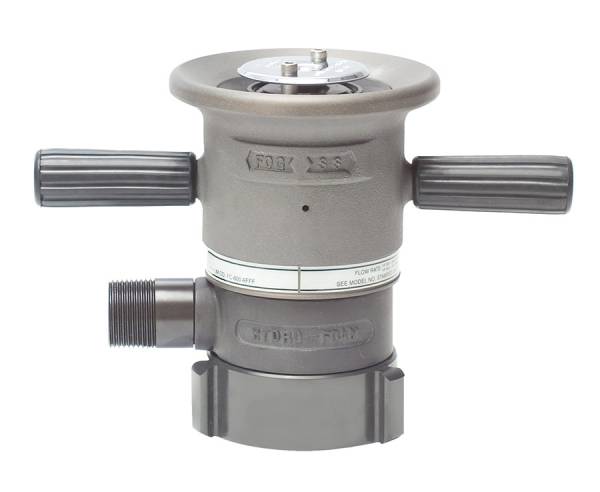

HF-350A / HF-500A Hydro-Foam Nozzle

Rated for 350 gpm (1330 LPM) or 500 gpm @ 100 psi (1900 LPM @ 7 BAR)
Cast aluminum self-educting foam nozzle design supplied with pick up tube
Pick up rates: ½%, 1%, 3%, 6% (HF-350A) ½%, 1%, 3%, (HF-500A)
2.5″ female swivel inlet

Brass Models

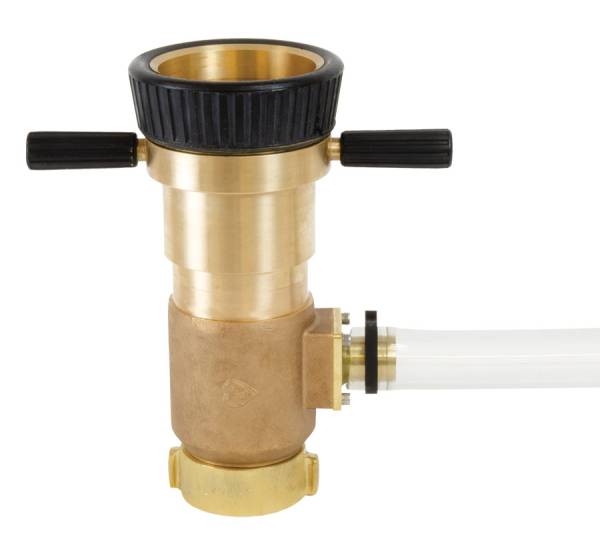

HF13-750 / HF13-1000

Rated for 750 gpm (2900 LPM) or 1000 gpm @ 100 psi (3800 LPM @ 7 BAR)
Clear vinyl 9′ (2.7 m) pick up hose included
Pick up rates: 1% and 3%
2.5″ female swivel inlet
Cast and satin brass finish
Proportioning disc or metering valve options for regulating foam
UL pending

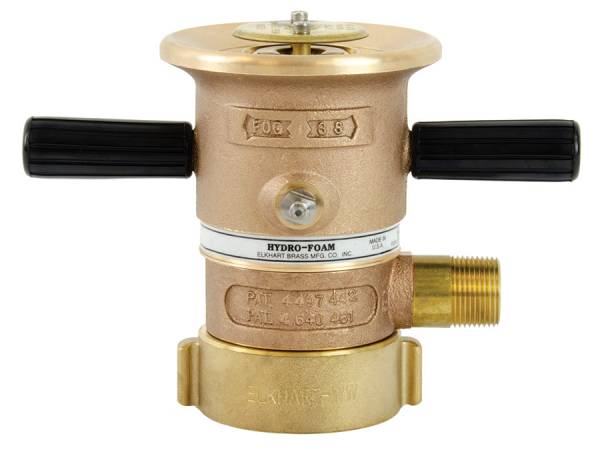

HF-350 / HF-500

Rated for 350 gpm (1330 LPM) or 500 gpm @ 100 psi (1900 LPM @ 7 BAR)
Clear vinyl 9′ (2.7 m) pick up hose included
Pick up rates: ½%, 1%, 3%, 6% (HF-350) ½%, 1%, 3% (HF-500)
2.5″ female swivel inlet
Satin brass or chrome plated finish (Aluminum version available)
U.L. Listed

Self-Educting Nozzle Accessories

Drum Pick Up Kit #2

Designed for use with HF13-750 / HF13-1000
Allows foam inlet of the nozzle to be pre-connected to a drum or tote of concentrate
Includes PVC pick up tub with shut-off valve, brass vacuum breaker, and clear reinforced vinyl 8′ (2.4 m) pick up hose

Drum Pick Up Kit #1

Designed for use with HF-350 and HF-500
Allows foam inlet of the nozzle to be pre-connected to a drum or tote of concentrate
Includes PVC pick up tub with shut-off valve, brass vacuum breaker, and clear reinforced vinyl 8′ (2.4 m) pick up hose

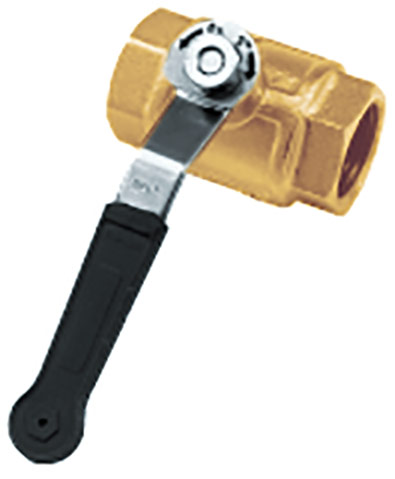

Metering Valve

Quarter-turn ball valve for instant proportioning change
Specify
- 1% / 3% configuration
- 3% / 6% configuration (HF-350 only)
Satin brass or chrome plated finish

Shut-Off Valve

Quarter-turn ball valve for positive shut-off of foam supply
Attaches to foam inlet of nozzle
Satin brass or chrome plated finish

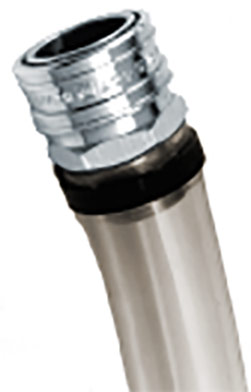

HF-350 and HF-500 Quick Connect Coupling

This brass quick-connect coupling provides an easy way of attaching/detaching pick-up hose
Satin brass or chrome plated finish
