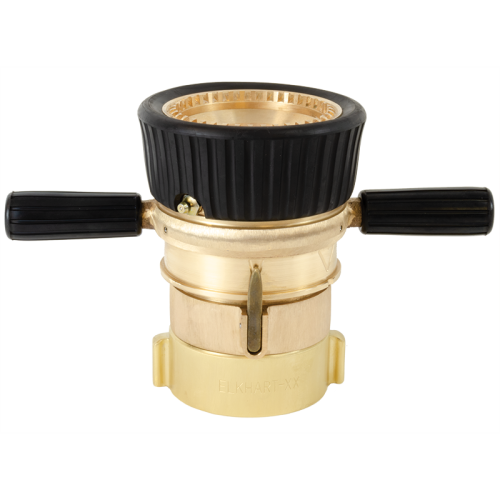

Select-O-Stream

The Elkhart Brass Select-O-Stream® nozzles are constant flow with a fully machined waterway that ensures excellent stream quality. The Select-O-Stream nozzles are FM Approved.

Key Features

Brass construction for corrosive and non-corrosive environment applications
Pattern easily changed under flowing conditions from straight stream to 90° fog
Grease zerk fitting for easy lubrication of tip threads
Satin and cast brass finish
No-twist shutoff

IMS-1000

Flow Rate: 1000 gpm @ 100 psi (3800 LPM @ 7 BAR)
2.5″ inlet
FM Approved

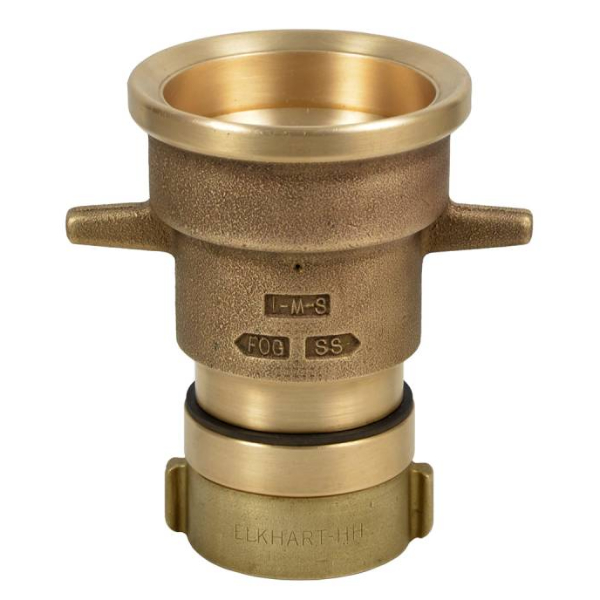

IMS-750

Flow Rate: 750 gpm @ 100 psi (2900 LPM @ 7 BAR)
2.5″ inlet
FM Approved

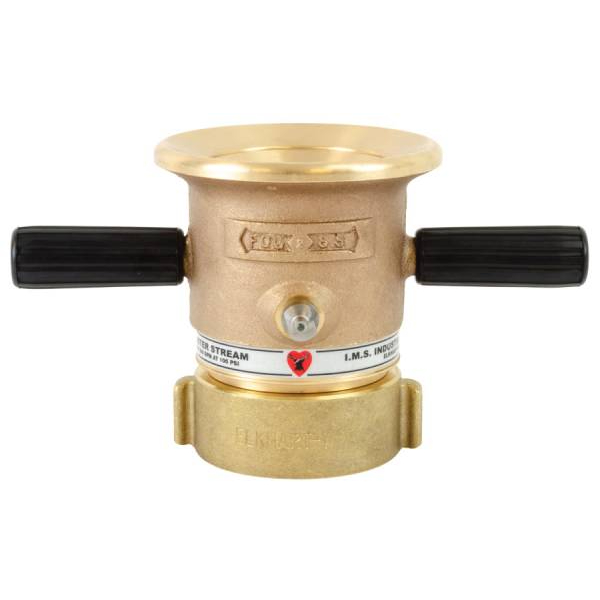

IMS-500

Flow Rate: 500 gpm @ 100 psi (1900 LPM @ 7 BAR)
Wide 140° fog pattern
2.5″ inlet
FM Approved

IMS-350

Flow Rate: 350 gpm @ 100 psi (1330 LPM @ 7 BAR)
Wide 140° fog pattern
2.5″ inlet

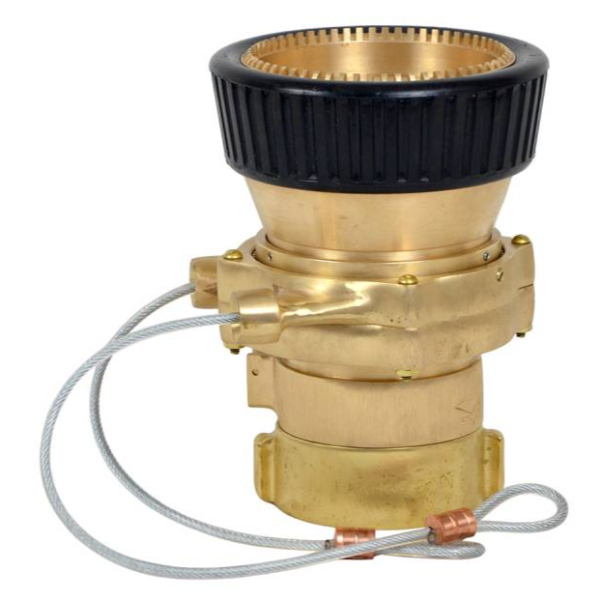

CJN-B-RC

Flow Rates
- 750 gpm @ 100 psi (2900 LPM @ 7 BAR)
- 1000 gpm @ 100 psi (3800 LPM @ 7 BAR)
Stream adjustment via cables for use with manual elevated monitors
2.5″ inlet
FM Approved

CJ-B-RC

Flow Rates
- 350 gpm @ 100 psi (1330 LPM @ 7 BAR)
- 500 gpm @ 100 psi (1900 LPM @ 7 BAR)
Stream adjustment via cables for use with manual elevated monitors
2.5″ inlet
FM Approved
