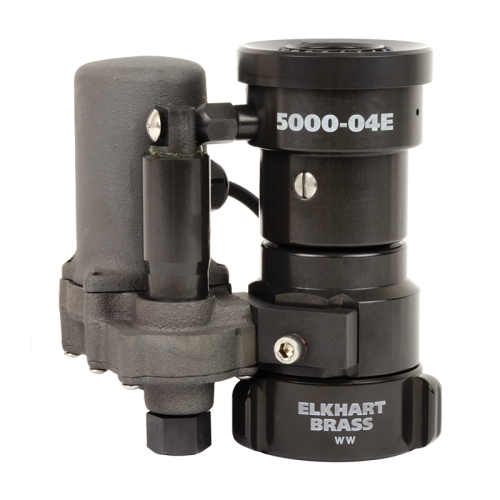

5000 Series Master Stream Nozzle

Designed for maximum reach and penetration when combined with Elkhart Brass monitors, they are available in a variety of discharge sizes to suit any application.

Key Features

Flow rates: 15-475 gpm (60-1800 LPM)
based on stem selection
100 psi (7 BAR) operating pressure
Straight stream, narrow fog (30°) or
wide fog (90°)
Spinning teeth
Manual override
Durable, lightweight aluminum
construction

Aluminum Models

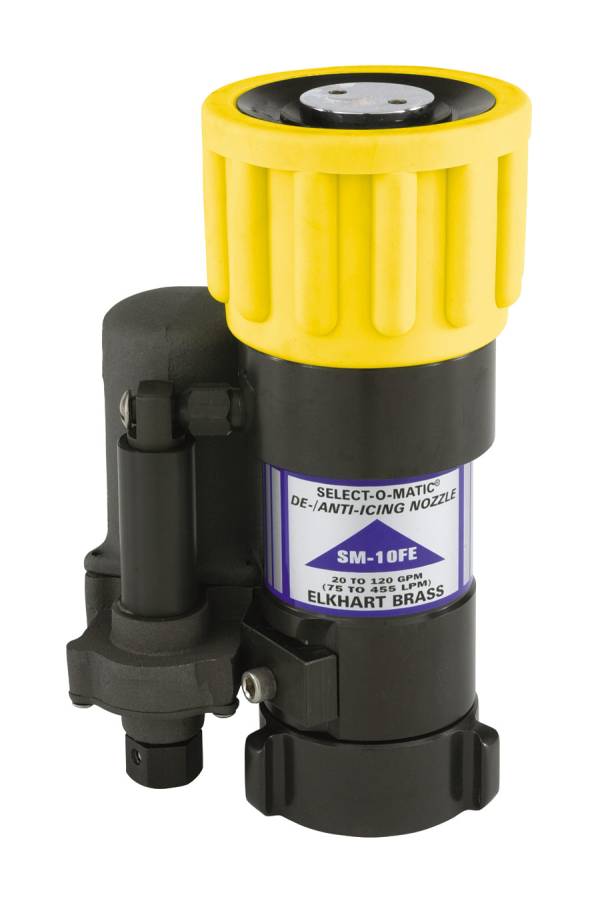

SM-10FE (D) Master Stream Nozzle

Automatic design to maximize reach and stream velocity based on available water supply
Flow range of 20-120 gpm @ 100 psi (80-460 LPM @ 7 BAR)
Stream pattern remotely controlled via robust electronic motor design
Hard coated aluminum finish
1.5″ female inlet
Deutsch or SAE wiring connections available

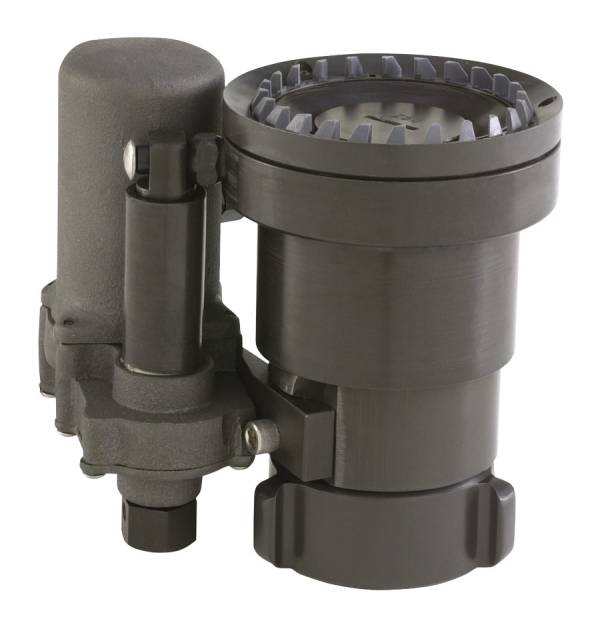

Model 5000-24E (D)

Available flow rates:
175 gpm, 200 gpm, 250 gpm, 350 gpm, 400 gpm OR 475 gpm @ 100 psi
(660 LPM, 750 LPM, 950 LPM, 1330 LPM, 1515 LPM, or 1800 LPM @ 7 BAR)
1.5″ female inlet
Deutsch or SAE wiring connections available

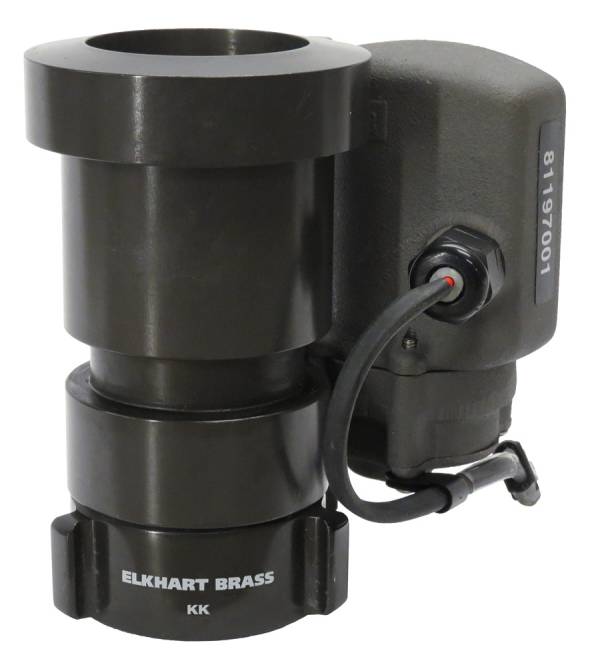

Model 5000-14E (D)

Available flow rates:
60 gpm, 75 gpm, 95 gpm, 125 gpm, OR 150 gpm @ 100 psi
(230 LPM, 300 LPM, 360 LPM, 475 LPM, or 570 LPM @ 7 BAR)
1.5″ female inlet
Deutsch or SAE wiring connections available

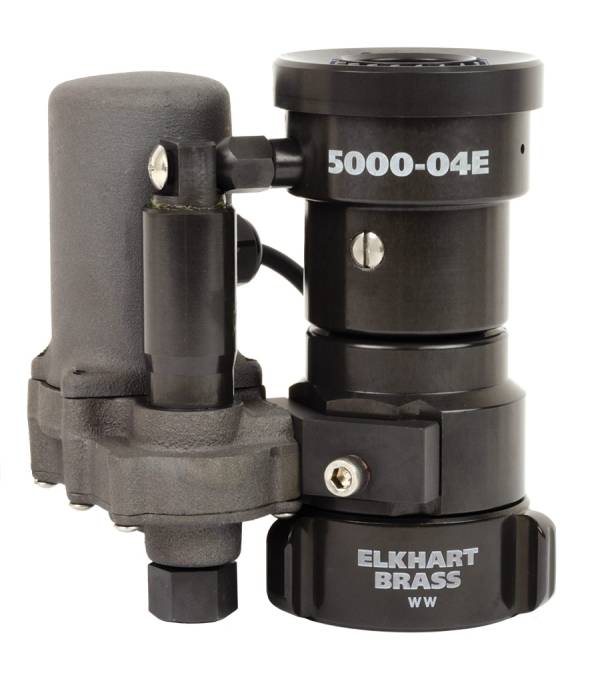

Model 5000-04E (D)

Available flow rates:
15 gpm, 30 gpm, OR 45 gpm @ 100 psi
(60 LPM, 115 LPM, or 170 LPM @ 7 BAR)
1.5″ female inlet
Deutsch or SAE wiring connections available
