Cobra EXM2

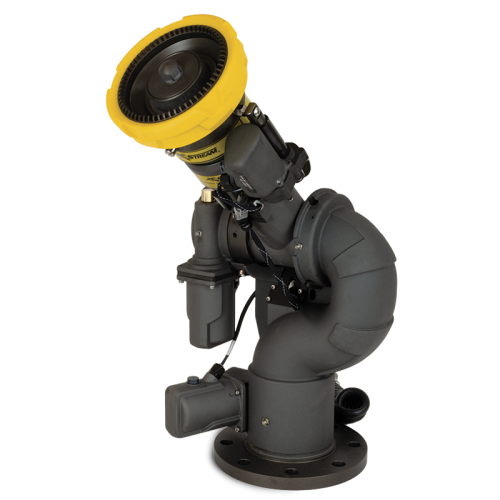

Efficient, high-flow, electric remote controlled; the Cobra™ EXM2 is ideal for fire apparatus, industrial pumper, and aerial vehicles. Utilizing the new EXM2™ operating platform, the 7200X2 Series of monitors feature built-in Wi-Fi for simple programming and setup. The EXM2 controls, both wired and wireless, provide improved performance and operator control. The EXM2 platform continues to incorporate heavy-duty swivel joints and thrust rods for unprecedented durability. The Cobra EXM2 comes standard with permanent magnet DC gear motors but may be upgraded to high power motors. Both motor options are sealed to NEMA 4.

Key Features

Rated for 1250 gpm (4750 LPM) (MODEL 7200SDX2 / 7200HDX2)
Rated for 1500 gpm (5700 LPM) (MODEL 7250SDX2 / 7250HDX2)
500 psi (34.5 BAR) maximum pressure rating
Durable, lightweight aluminum construction
Teflon impregnated, hard coated aluminum finish
SD = Standard-duty motors
HD = Heavy-duty, high torque motors for continuous use applications

Models

Inlet

Travel Range

Outlet

Recommended Controllers

See EXM2 Monitors for the complete line of EXM2 input controllers.

Joystick Controller 7030X2

The joystick controller is designed to be surface mounted in the vehicle cab, providing convenient and intuitive control of the monitor. Containing all of the EXM2 monitor controls, the joystick utilizes proportional speed control for precise positioning of the water stream. Operate a valve using the joystick trigger or the OPEN/CLOSE buttons on the mounting plate. Integrating CANbus within the joystick design eliminates the need for an external module, simplifying installation and programming.

Wireless Handheld Controller/Gateway 7015X2

The IP67 rated wireless remote control includes everything needed to operate a monitor, nozzle and optional Unibody valve from a safe location. The docking station with built-in induction charging system eliminates the need for replaceable batteries. The wireless controller comes pre-configured to communicate via RF to the Gateway Module. The module, with an external antenna, can then be mounted in a location convenient to the apparatus builder. The Gateway connects via CANbus harnesses directly to the monitor.

Panel Mount Controller 7010X2

Designed to be mounted on a panel, the controller is hardwired directly to the monitor via CANbus. Compatible with 12 or 24VDC systems and rated to IP67.
