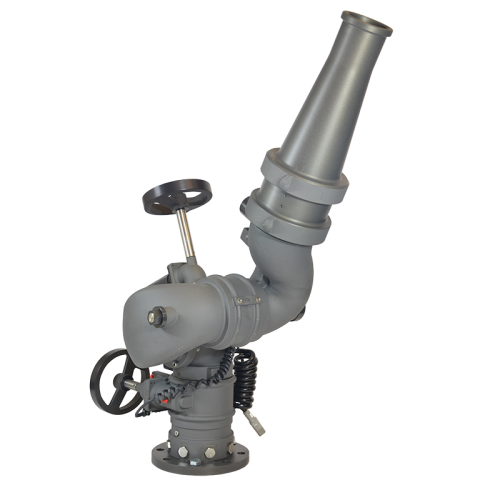

SkyStream EXM2

Extreme flow, electric remote controlled, the SkyStream™ EXM2 monitor is ideal for fire apparatus, ARFF industrial pumpers, and aerial vehicles. The SkyStream EXM2 provides an option for extreme flow applications. Utilizing the new EXM2™ operating platform, the 7500X2 features built-in Wi-Fi for simple programming and setup. The EXM2 controls, both wired and wireless, provide improved performance and operator control. The EXM2 platform continues to incorporate heavy-duty swivel joints and thrust rods for unprecedented durability.

Key Features

Inlet

Travel Range

Outlet

Recommended Controllers

See EXM2 Monitors for the complete line of EXM2 input controllers.

Position Display 7051X2

The Position Display provides instant feedback to the operator on the monitor’s current position utilizing the signal from the monitor’s integrated position sensors.

Wireless Handheld Controller/Gateway 7015X2

The IP67 rated wireless remote control includes everything needed to operate a monitor, nozzle and optional Unibody valve from a safe location. The docking station with built-in induction charging system eliminates the need for replaceable batteries. The wireless controller comes pre-configured to communicate via RF to the Gateway Module. The module, with an external antenna, can then be mounted in a location convenient to the apparatus builder. The Gateway connects via CANbus harnesses directly to the monitor.

Panel Mount Controller 7010X2

Designed to be mounted on a panel, the controller is hardwired directly to the monitor via CANbus. Compatible with 12 or 24VDC systems and rated to IP67.
