Details

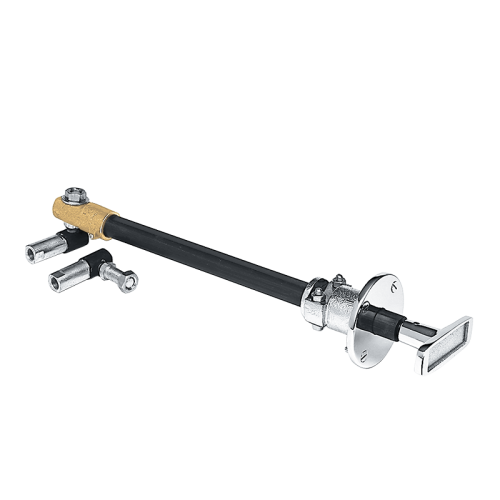

Remote Valve Controls

Push-pull control for the operation of in-line, quarter-turn ball valves or built-in eductors. Handle configuration allows identification/location label to be inserted.

Tee Handle Remote Control Units

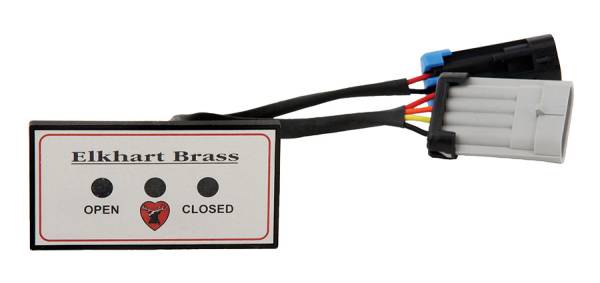

Optional Valve Status Indicator

For use with RC-10 – Slow closing valve control handle
Requires minimal pump panel space
Tri-color indicators: red (closed), yellow (gated) and green (open)
Feature 100,000-hour, ultra-bright LEDs mounted within an optical filter to maximize visibility in bright sunlight
NEMA 4 rated
Chrome bezel included

RC-10 – Slow Closing Valve Control

Remote actuation of any ball valve
Linear output screw-type actuator compliant with NFPA 1900 (as it pertains to slow-closing valves)
Actuator and push-rod constructed of extruded aluminum alloys
Precision needle thrust bearing and hardened thrust washers
5″ cast alloy handwheel with collet-type connection allows for easy compact thru-panel installation (either new or retrofit)
Furnished with threaded ball swivel joint at end of drive rod
Installation diameter: 1.03″ (pump panel) (2.6 cm)
Length: 16.4″ (retracted) and 21.4″ (extended) (41.6 cm or 54.3 cm)

RC-7

Non-locking handle
1″ Installation diameter (2.5 cm)
Specify 11.3″, 9.8″, or 7.3″ Travel
Chrome-plated case, brass handle with anodized aluminum extrusion rod

RC Accessories

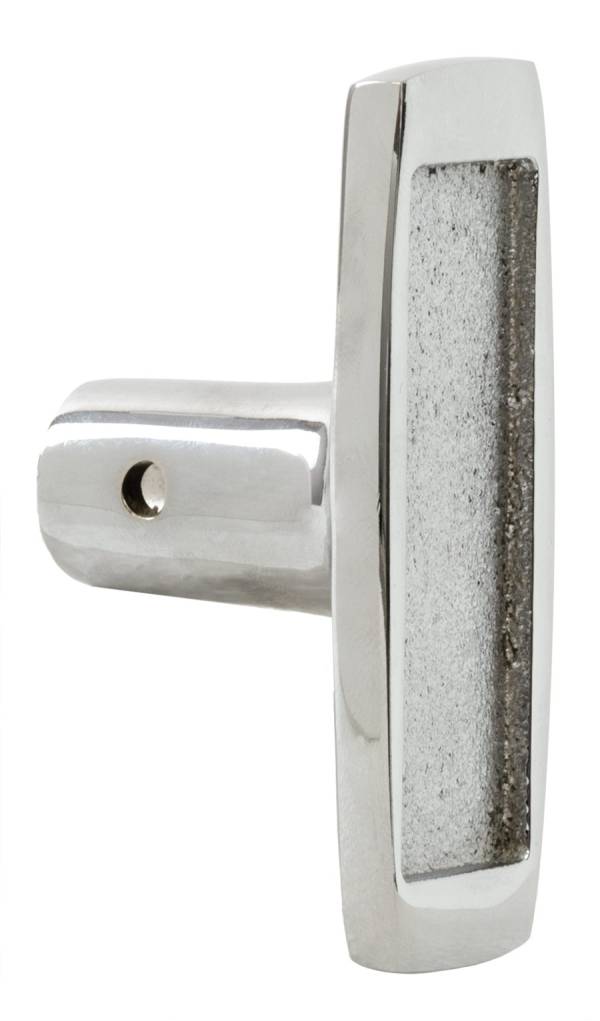

775-15 – Tee Handle

For use with push-pull rods to remotely operate in-line, quarter-turn ball valves or built-in eductors
Bored for 0.5″ rod (1.2 cm)
Can be threaded to .500″ — 13 or .500″ — 20 (specify)
Handle configuration allows identification/location label to be inserted
Material: Cast brass with chrome-plated finish
Height: 1.1″ (2.7 cm)

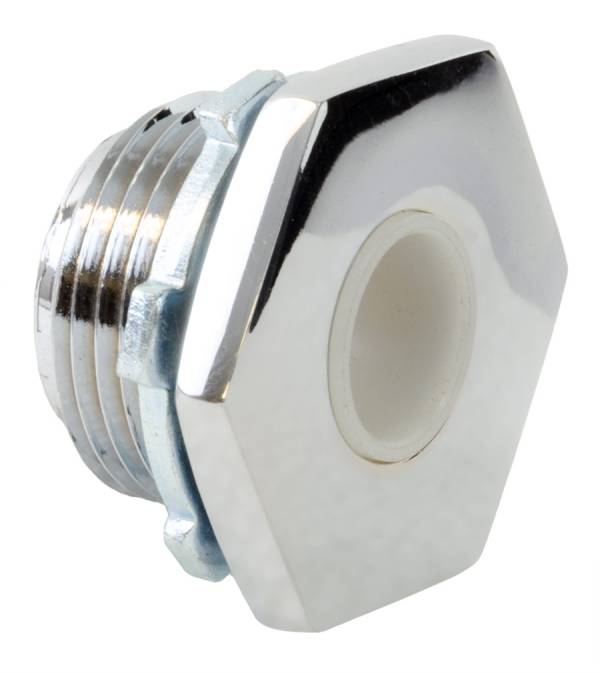

775-11 – Rod Guide

For centering and guiding remote control rod
Nylon sleeve for 0.5″ rod (1.2 cm)
Material: Cast brass with chrome-plated finish
Diameter: 1.5″ (3.8 cm)

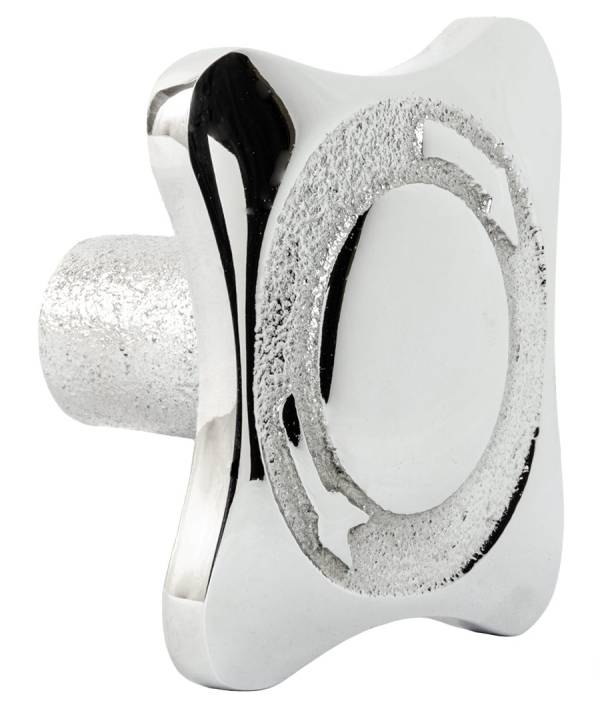

775-5 – Handle

For remote control screw-type gate valve or gear-driven valve
Bored for .375″ rod (0.95 cm)
Material: Cast brass with chrome-plated finish
Diameter: 4″ (10.1 cm)
