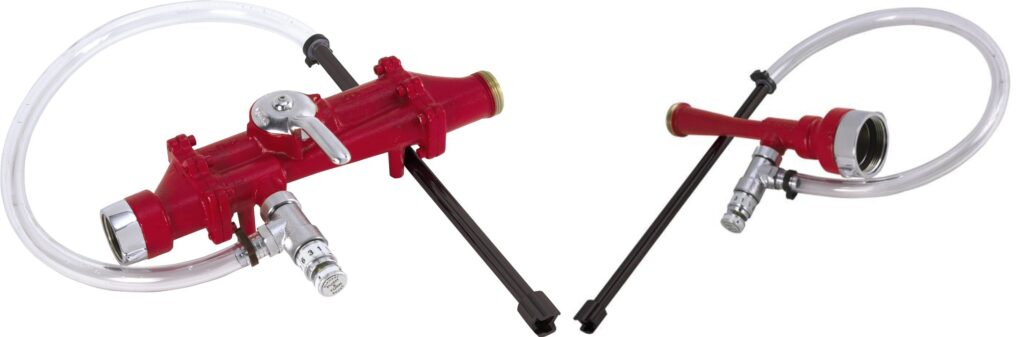

Foam Eductors

Key Features

Simple, Efficient Venturi Design
By-pass allows for water only at lower inlet pressures
Positive setting metering valve proportioning settings of ½%, 1%, 3%, 6%
2.5″ or 1.5″ female swivel inlet x 1.5″ male outlet
Rugged, corrosion resistant brass construction
Red urethane enamel and satin brass trim finish (chrome plated brass trim optional)

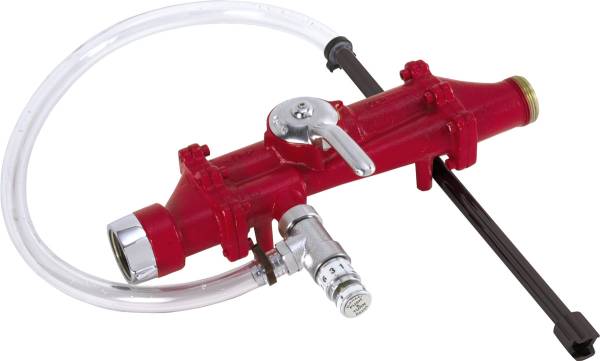

By-Pass Style

By-Pass Style

240-95

Rated to flow 95 gpm at 200 psi (360 LPM @ 14 BAR) inlet pressure

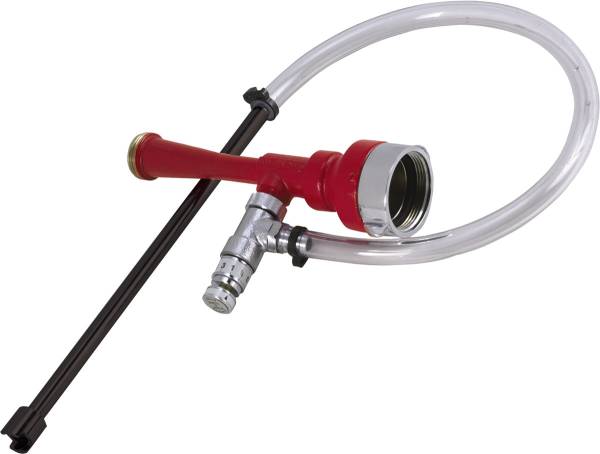

Inline Style

Inline Style

241-60

Rated to flow 60 gpm at 200 psi (230 LPM @ 14 BAR) inlet pressure

241-95

Rated to flow 95 gpm at 200 psi (360 LPM @ 14 BAR) inlet pressure

241-125

Rated to flow 125 gpm at 200 psi (475 LPM @ 14 BAR) inlet pressure

241-150

Rated to flow 150 gpm at 200 psi (570 LPM @ 14 BAR) inlet pressure

241-30

Rated to flow 30 gpm at 200 psi (115 LPM @ 14 BAR) inlet pressure
Infinite setting metering valve from 0% to 6%
1.0″ -OR- 1.5″ female swivel inlet x 1.0″ male outlet
Red urethane enamel and chrome plated finish trim

SMOOTH BORE XD COLORS

Choose bumper color (black is standard on XD Smooth Bores)

Orange

Green

Grey

Glow

Blue

Black

Yellow

White

Tan

Red

Purple

Pink

The Configurator

Elkhart Brass has engineered and designed with simple, trouble-free configuration, installation, operation and service in mind. Simply choose the options to suit your needs. It’s that simple.
