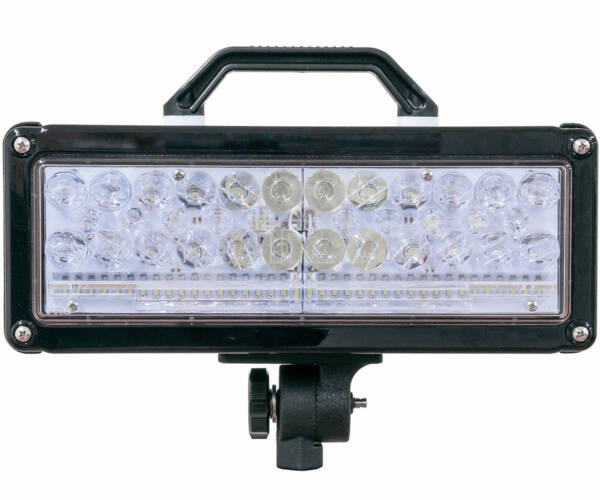

The Spectra HR uses two unique groups of lenses. The upper group projects wide beams at different angles to cover the entire vertical face of the building. At the same time the lamphead’s lower group lights the ground area in front of a fire apparatus. Each 28,000 lumen Spectra HR achieves this illumination without lamp adjustment.
Key Features
Sure-Grip molded handle ensures reliable grip every time and keeps the handle cool to the touch
Upper group illuminates the vertical face of the building
Lower group illuminates the work area in front of the apparatus
Powerful spot/flood LEDs deliver more light economically & efficiently
72 ultra-bright white LEDS - 34 for the Upper Group and 38 for the Lower Group
Adjustable, pivoting mounting arm incorporates a round, sturdy, reinforced knurled locking knob
Lamp head measures 14" (355 mm) W x 3 3/4" (95 mm) D x 5 3/8" (137 mm) H
Available in both 12/24 VDC and 120/240 VDC, with or without a switch
Choose from the standard white bezel or the optional chrome or black bezels
Choice of Pole or Tripod mount with or without a switch
SPECTRA LED lampheads output an impressive 20,000 lumens of super bright LED light. The advanced lens and arrangement of LEDs generate a unique combination flood and spot light pattern.
Voltage
Certifications
Rating
Model
Amperage
Raw Lumens
Effective Lumens
12V/24V
IP68
D28
20.8/10.4A
28,000
23,800
120V
IP68
E28
2.8A
28,000
23,800
240V
IP68
F28
1.4A
28,000
23,800
