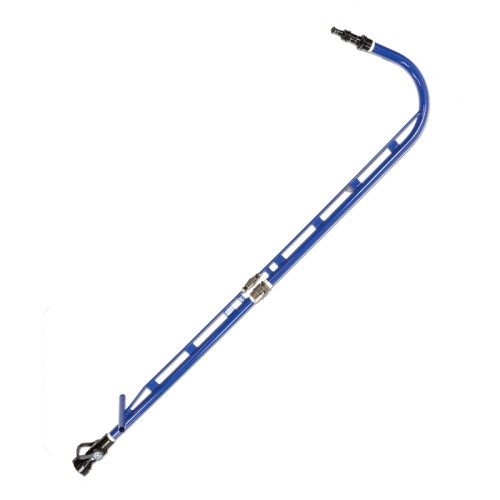

Floor Below Nozzle - Model FBN

The Floor Below Nozzle has been specifically designed for fighting fires in high-rise buildings from the floor below at an effective angle and flow rate. It is not uncommon to experience wind driven and high heat conditions in high-rise building fires that can challenge conventional tactics. The Floor Below Nozzle provides a field-tested solution allowing crews to flow water from the floor below. It comes in a two-piece design making transport to upper floors and storage easier.

Key Features

Built in 2.5″ XD Shutoff
2.5″ Swivel Inlet
1.5″ Male Outlet
Blue powder coat paint finish
101″ (2.57m) long
Attaching a 1-1/8″ tip (sold separately) would allow flows of 265 gpm (1000 LPM) at 50 psi (3.5 BAR)

Associated Item

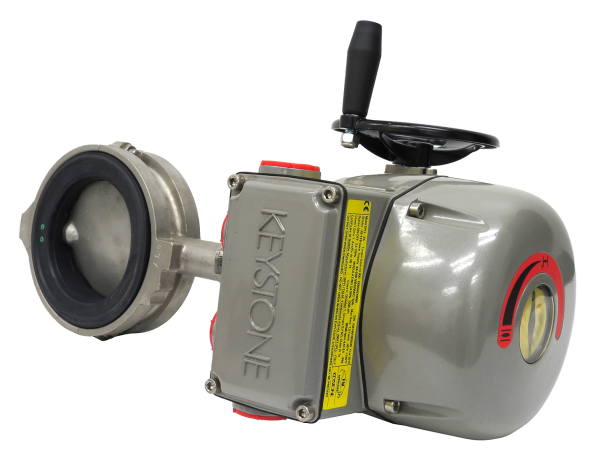

Motor Operated Valve (MOV)

Optional Electric Actuated Butterfly Valve

4.0″ Electric Butterfly Valve
Can be used on remote-controlled monitor systems
Temperature range: -40 to 149°F; Stainless Steel valve with EPDM seat; 120-240VAC 50/60 Hz., 1-phase operating power; NEMA 4, 4x and 6, IP66/68; operating pressure – 150 PSI
FM Approved: Class I Zone 1; AEx/Ex de IIB T5: Acceptable for Class I, Div. 2, Groups C and D, T5 Class II, Div. 2 Groups E, F, and G, Class III:T4
