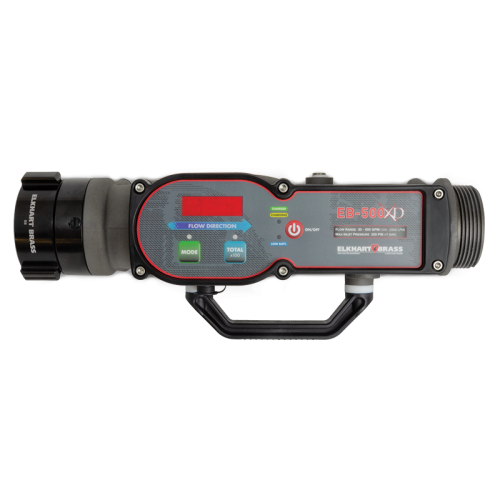

EB-500-XD Portable Flow Meter

The EB-500-XD portable flow meter changes the game when it comes to accurate and effective flow testing. The flow tube, paddlewheel, digital readout, and battery are all self‑contained making this unit extremely compact. The waterway features a unique internal waterway shape ensuring laminar flow for consistently accurate readings up to 500 gpm (1900 LPM). The flow pickup is a paddlewheel design which is located further into the middle of the waterway increasing reliability of the flow readings. The field programmable unit contains an internal rechargeable battery with visible status lights letting you know when the unit is low on power and when it is fully charged. The unit also features a totalizer function letting you know the total amount of water flowed. With the attached carrying handle and weighing only 8.4 lbs (3.8 kg), the EB-500-XD truly maximizes portability.

Key Features

Single self-contained unit as opposed to multi-component designs
Unique internal waterway shape ensures laminar flow and accurate readings up to 500 gpm (1900 LPM)
Large numerical digital readout
Flow is read through a paddlewheel located deeper into the middle of the waterway for reliable readings
Contains internal rechargeable battery with status lights with battery life up to 8 hours
Totalizer function letting you know the total amount of water flowed
Simple field calibration procedure when required
NEMA 4 Waterproof Rating
Hard case for storage

Details

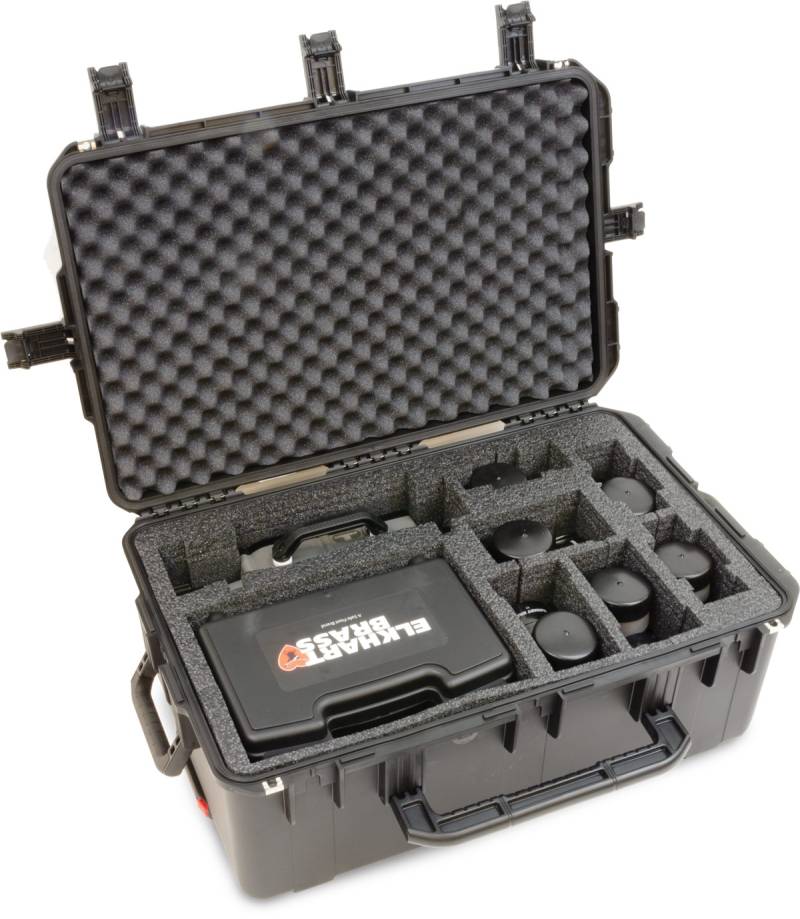

NFPA 1962 Flow Test Kit

The Elkhart Brass Flow Test Kit includes all essential components needed to accurately determine fire flows, friction losses, and pump discharge pressures. It is necessary equipment for conducting your NFPA 1962 flow test of nozzles, hose and appliances, as well as comprehensive hose and nozzle training.

Kit Includes

One EB-500-XD Portable Flowmeter
One Digital Handheld Pitot Gauge

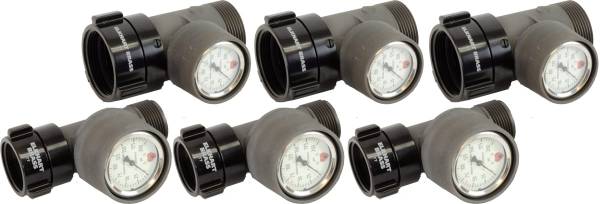

Three Model 228A 1.5″ Line Gauges
Three Model 228A 2.5″ Line Gauges
One Carrying Case
Totalizer function letting you know the total amount of water flowed
Simple field calibration procedure when required
NEMA 4 Waterproof Rating
Hard case for storage

Flow Testing Essentials

The Elkhart Brass Flow Test Kit includes all essential components needed to accurately determine fire flows, friction losses, and pump discharge pressures. It is necessary equipment for conducting your NFPA 1962 flow test of nozzles, hose, and appliances, as well as comprehensive hose and nozzle training.

227A-2.5″ Piezometer Gauge

0-300 psi (0-20 BAR) liquid-filled gauge
Multiple internal ports balance pressure reading
Lightweight hard coated aluminum
2.5″ female swivel inlet x 2.5″ male outlet

227A-1.5″ Piezometer Gauge

0-300 psi (0-20 BAR) liquid-filled gauge
Multiple internal ports balance pressure reading
Lightweight hard coated aluminum
1.5″ female swivel inlet x 1.5″ male outlet

228A-2.5″ Inline Pressure Gauge

0-200 psi (0-14 BAR) fully guarded, shock resistant air-filled gauge
Phosphorescent gauge face assists viewing in low light conditions
Protective gauge face cover included
Lightweight cast aluminum
Free swivel inlet allow movement
2.5″ female swivel inlet x 2.5″ male outlet

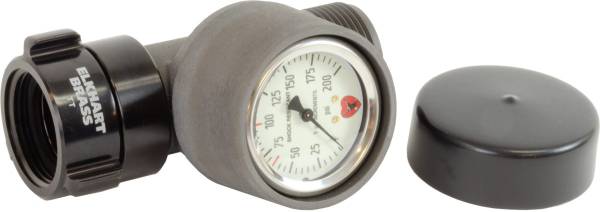

228A-1.5″ Inline Pressure Gauge

0-200 psi (0-14 BAR) fully guarded, shock resistant air-filled gauge
Phosphorescent gauge face assists viewing in low light conditions
Protective gauge face cover included
Lightweight cast aluminum
Free swivel inlet allow movement
1.5″ female swivel inlet x 1.5″ male outlet

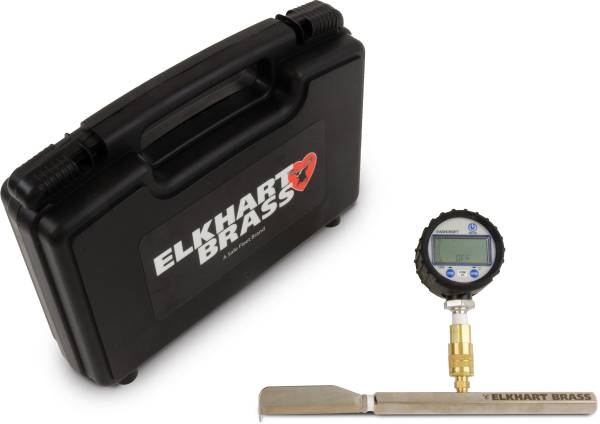

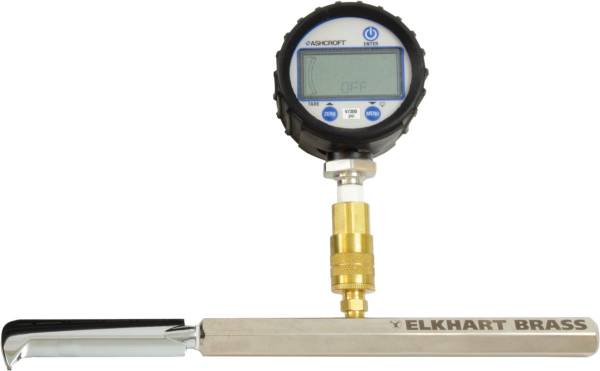

Digital Handheld Pitot Gauge

Ideal for determining nozzle pressure for smooth bore tips
Accurately read pressure from 0-300 psi (0-20 BAR) down to the tenth psi
Gauge features a backlit display and protective rubber boot
Durable pitot blade
Includes carrying case

Motor Operated Valve (MOV)

Optional Electric Actuated Butterfly Valve

4.0″ Electric Butterfly Valve
Can be used on remote-controlled monitor systems
Temperature range: -40 to 149°F; Stainless Steel valve with EPDM seat; 120-240VAC 50/60 Hz., 1-phase operating power; NEMA 4, 4x and 6, IP66/68; operating pressure – 150 PSI
FM Approved: Class I Zone 1; AEx/Ex de IIB T5: Acceptable for Class I, Div. 2, Groups C and D, T5 Class II, Div. 2 Groups E, F, and G, Class III:T4
