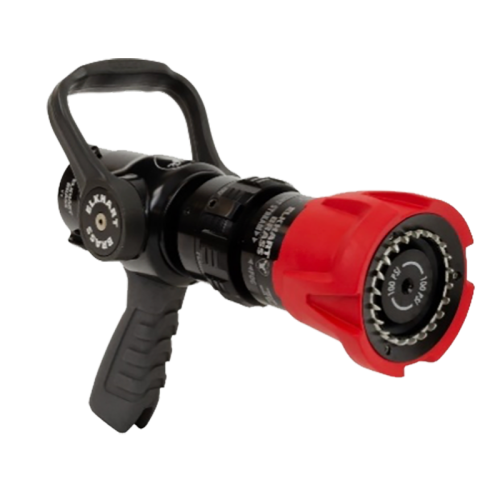

Selectable Flow Handline Nozzles

The Phantom® XD™ selectable flow nozzle series has your target flow covered! With different pressure and flow ranges available, there is one to meet your need. Built with positive interlocking, robust tactile selection grips, selecting the desired flow rate won’t be a problem even in the harshest conditions. If selectable flow is your choice, then choose the Phantom XD.

Key Features

Phantom XD Nozzles

Available with Optional Pistol Grip

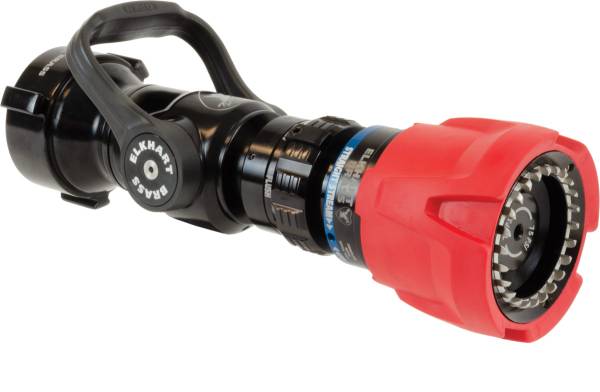

High-Range 2.5″ Free Swivel Inlet/1-3/8″ Waterway

75 psi (5 BAR)
Settings: 125-150-200-250 gpm (475-570-750-950 LPM)

100 psi (7 BAR)
Settings: 125-150-200-250 gpm (475-570-750-950 LPM)

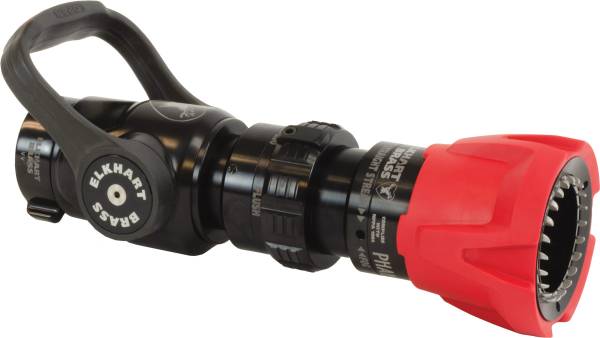

Mid-Range 1.5″ Free Swivel Inlet/1-3/8″ Waterway

Flow Rates:

75 psi (5 BAR)
Settings: 30-60-95-125-150-200 gpm (115-230-360-475-570-750 LPM)

100 psi (7 BAR)
Settings: 30-60-95-125-150-200 gpm (115-230-360-475-570-750 LPM)

Mid/Low-Range 1.5″ Free Swivel Inlet/1.0″ Waterway

100 psi (7 BAR)
Settings: 30-60-95-125 gpm (115-230-360-475 LPM)

FOG NOZZLE XD COLORS

Choose bumper color, bale insert, and pistol grip insert color (orange is standard on Chief XD, yellow is standard on Select-O-Matic XD, and red is standard on Phantom XD)

Orange

Green

Grey

Glow

Blue

Black

Yellow

White

Tan

Red

Purple

Pink

The Configurator

Elkhart Brass has engineered and designed with simple, trouble-free configuration, installation, operation and service in mind. Simply choose the options to suit your needs. It’s that simple.

Product Videos

Custom Laser Etching

Teeth

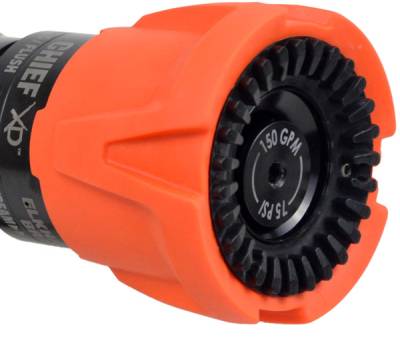

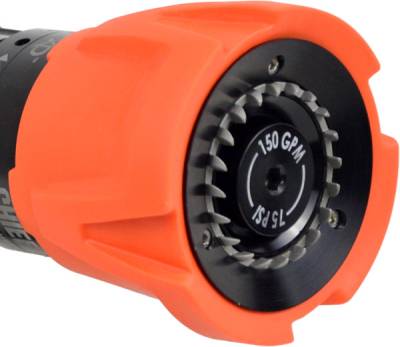

Choose from spinning stainless steel metal or fixed molded urethane teeth.

Inlet Threads

Connect with our team

Our experts are ready to help you take the next step.
