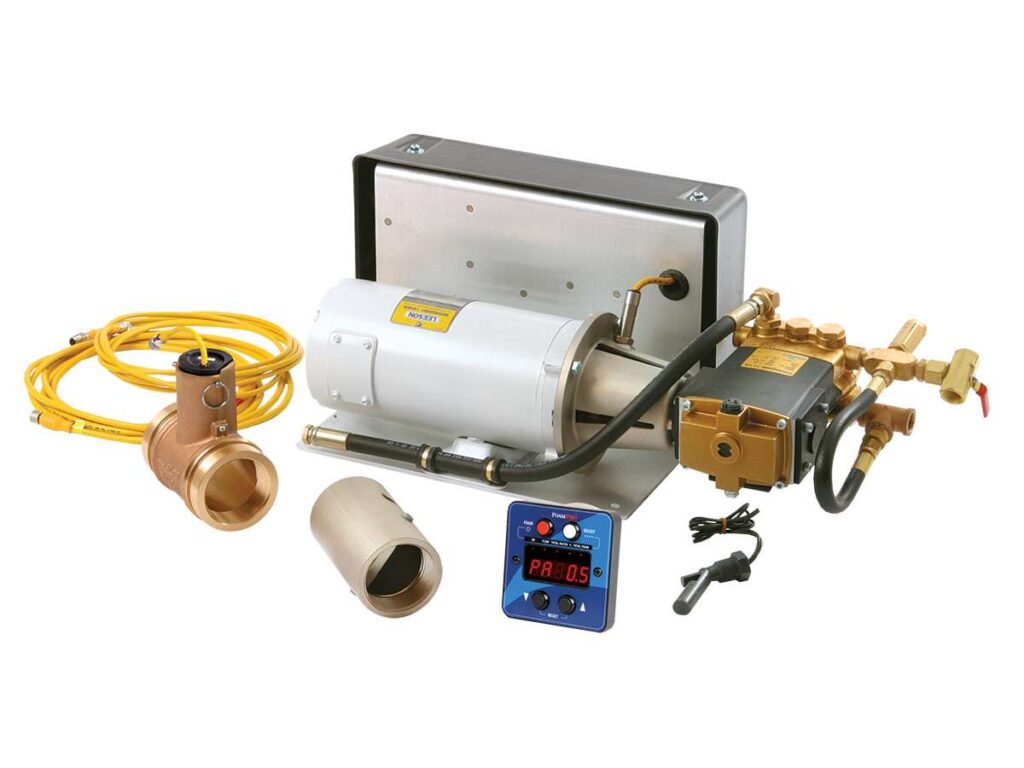

2000 Series Electric Single-Point Injection

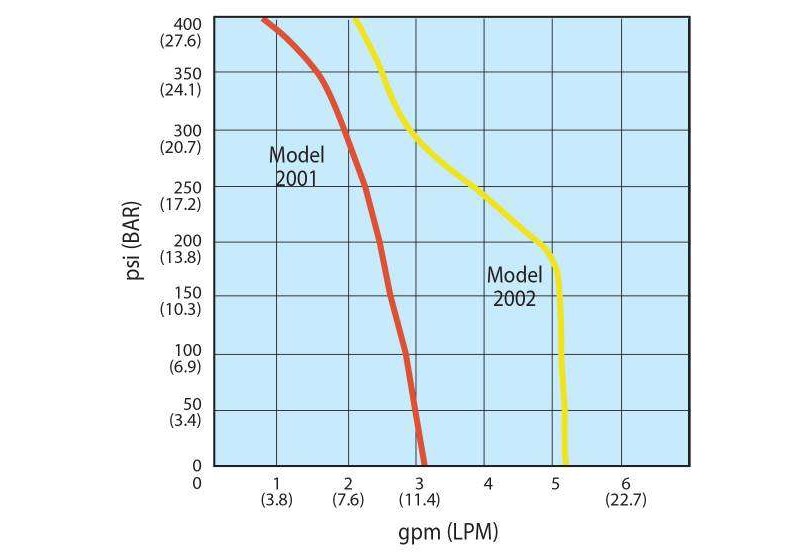

Designed for Class A and/or Class B foam applications, the 2000 series of proportioners delivers greater flow capabilities than the 1600 series. In addition, the panel-mounted digital control module offers easy to use, push button control. Real time flow and proportioning performance information is displayed by ultra-bright LED readouts. The system features fully automatic foam proportioning, regardless of changes in flow or pressure, and delivers unmatched accuracy over the entire flow range. Proportioning is continuous with no need to stop for foam tank refill. Two models are available, differing in concentrate capacity: the 2001 at 2.6 gpm (9.8 LPM), the 2002 at 5.0 gpm (19 LPM). Foam concentrate is delivered by a triplex plunger pump and motor (12 or 24 VDC) assembly. The optional advanced feature controller offers “auto-on” programming.
