Details

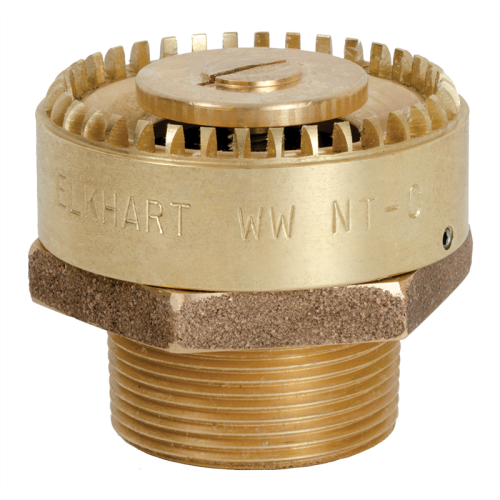

Fixed System Nozzles

Designed for use in fixed system applications. Adjustable nozzles can be pre-set at the factory or set in the field at time of installation. The fog pattern, which can be set up to 120°, can also easily be set or adjusted on site.

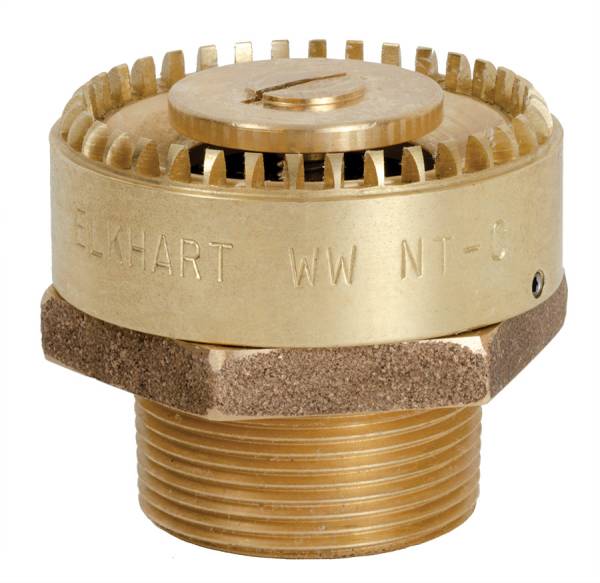

NT-C

Adjustable flow rate from 100-250 gpm (380-950 LPM)
Adjustable fog pattern up to 120°
1.5″ male NPT inlet standard
Rugged brass construction and finish

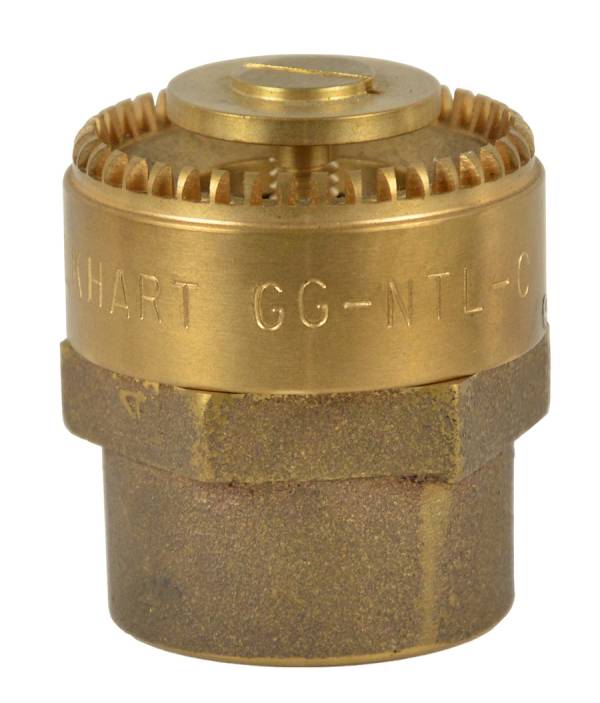

NTL-C

Adjustable flow rate from 40-100 gpm (150-380 LPM)
Adjustable fog pattern up to 120°
1.0″ male NPT inlet standard, female optional
Rugged brass construction and finish

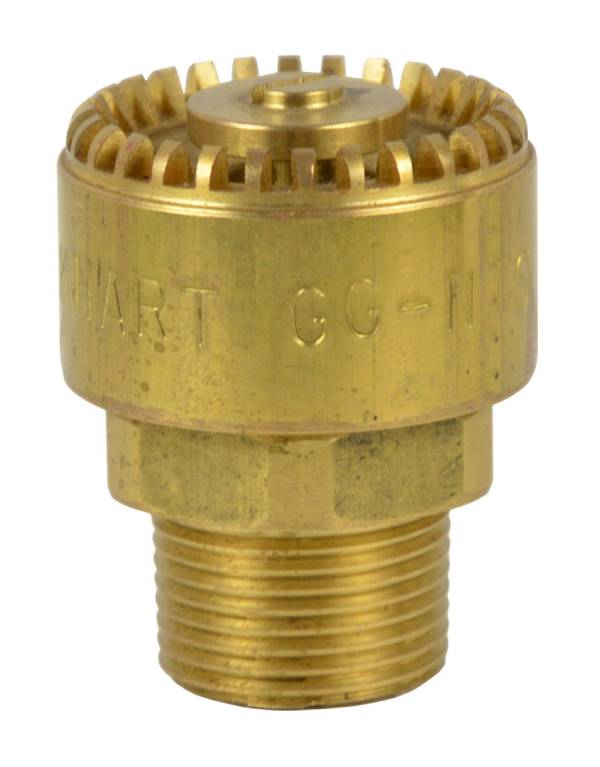

NTS-C

Adjustable flow rate from 5-40 gpm (20-150 LPM)
Adjustable fog pattern up to 120°
0.75″ male NPT inlet standard, female optional
Rugged brass construction and finish
