Smooth Bore Tips

Designed for maximum reach and penetration when combined with Elkhart Brass monitors, they are available in a variety of discharge sizes to suit any application.

Aluminum Models

181-CAFS – CAFS Smooth Bore Tip

1-3/8″ Discharge
Long barrel design for optimum foam finish
Hard coated aluminum finish
1.5″ female inlet

181-3A Deluge Tip

3″ Discharge Size
Rated for 2391 gpm @ 80 psi (9050 LPM @ 5.5 BAR)
Built-in stream shaper
Hard coated aluminum finish
3.5″ female inlet

ST-197A Triple Stacked Tip

Discharges sizes of 1″ / 1-1/4″ / 1-1/2″
Rated for 265 gpm / 413 gpm / 596 gpm @ 80 psi (1000 LPM / 1560 LPM / 2250 LPM @ 5.5 BAR)
Hard coated aluminum finish
2.5″ female inlet

181-A Deluge Tip

Hard coated aluminum finish
2.5″ female inlet

Available discharge sizes
1-3/8″ Discharge Size
Rated for 500 gpm @ 80 psi (1900 LPM @ 5.5 BAR)

1-1/2″ Discharge Size
Rated for 597 gpm @ 80 psi (2260 LPM @ 5.5 BAR)

1-3/4″ Discharge Size
Rated for 813 gpm @ 80 psi (3080 LPM @ 5.5 BAR)

2-1/4″ Discharge Size
Rated for 1345 gpm @ 80 psi (5090 LPM @ 5.5 BAR)

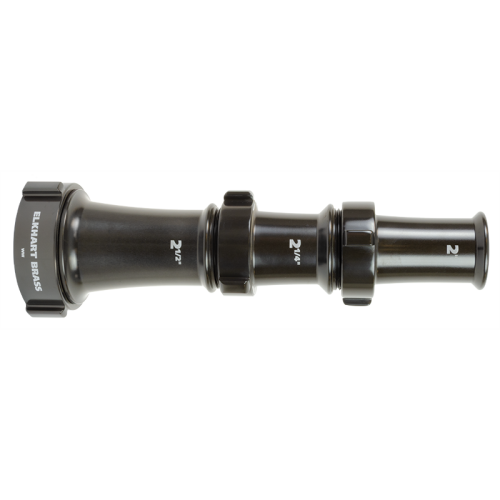

ST-195 Stacked Tip

Discharges sizes of 2″ / 2-1/4″ / 2-1/2″
Rated for 1062 gpm / 1345 gpm / 1660 gpm @ 80 psi (4020 LPM / 5090 LPM / 6283 LPM @ 5.5 BAR)
Hard coated aluminum finish
3.5″ female inlet

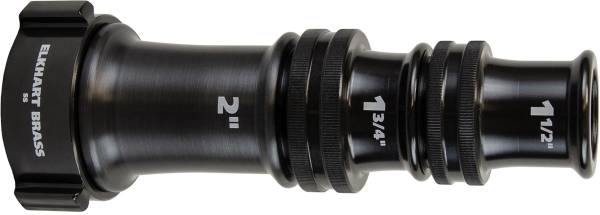

ST-191A Triple Stacked Tip

Discharges sizes of 1-1/2″ / 1-3/4″ / 2″
Rated for 597 gpm / 813 gpm / 1062 gpm @ 80 psi (2260 LPM / 3080 LPM / 4020 LPM @ 5.5 BAR)
Hard coated aluminum finish
2.5″ female inlet

Brass Models

ST-191-1 Triple Stacked Tip

Discharges sizes of 1-3/8″, 1-1/2″, 1-3/4″
Brass construction with satin brass or chrome-plated finish
2.5″ female inlet

ST-191 Triple Stacked Tip

Discharges sizes of 1-1/2″, 1-3/4″, 2″
Brass construction with satin brass or chrome-plated finish
2.5″ female inlet

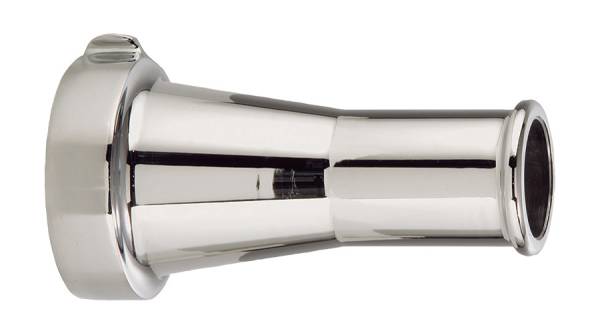

181-3 Deluge Tip

Available discharge sizes:
2″, 2-1/4″, 2-1/2″, 3″
Brass construction with satin brass or chrome-plated finish
3.5″ female inlet

181 Deluge Tip

Available discharge sizes:
1″, 1-1/8″, 1-1/4″, 1-3/8″, 1-1/2″, 1-5/8″, 1-3/4″, 1-7/8″, 2″, 2-1/4″
Brass construction with satin brass or chrome-plated finish
2.5″ female inlet

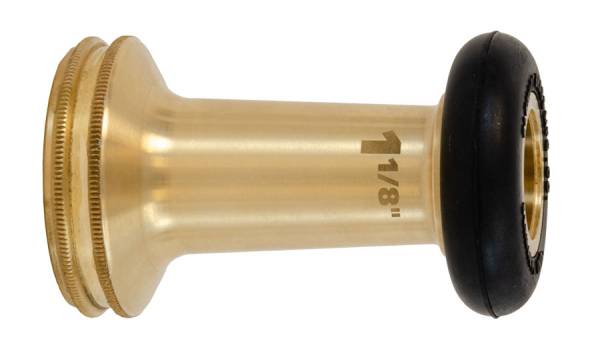

185-B

Available discharge sizes:
1/2″, 5/8″, 3/4″, 7/8″, 15/16″, 1″, 1-1/8″, 1-3/16″, 1-1/4″
Brass construction with satin brass or chrome-plated finish
1.5″ female inlet
