1600 Series Electric Single-Point Injection

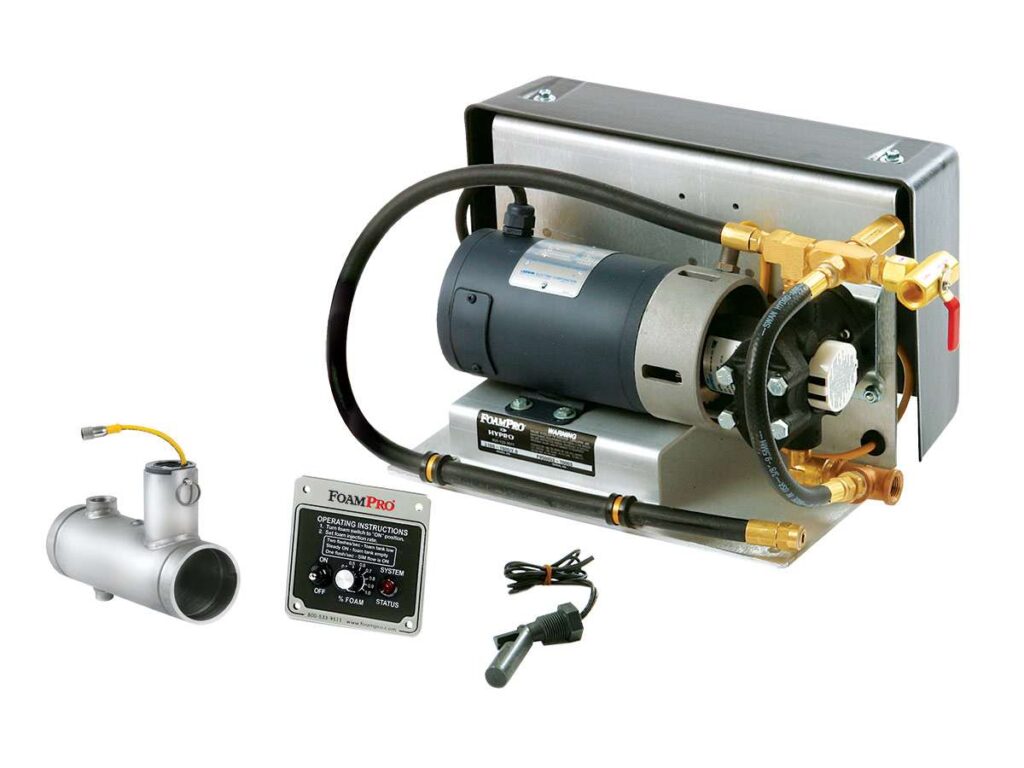

Leading off the FoamPro line, the 1600 series proportioning systems are specifically designed for Class A foam operations. Capable of drafting up to 3 feet (0.9m), the compact system features fully automatic foam proportioning, regardless of changes in flow or pressure, and delivers unmatched accuracy over the entire flow range. Proportioning is continuous with no need to stop for foam tank refill. The panel-mounted control module provides simple operation at the flip of a switch and offers easy selection of foam percentage. Foam concentrate is delivered by a twin plunger pump coupled to a 1/3 HP motor (12 or 24 VDC). Also included is a flow sensor (choice of 1-1/2″ with 1″ bore, 1-1/2″ or 2″), strainer, foam injection check valve, complete shielded cable set, and RFI/EMI suppression kit. The 1600 Model is engineered for greater capacity while the 1601 Model is specifically designed for extended ultra-low flow applications.
