X-Stream

Built to perform, the X-Stream^® Series automatic nozzles are designed to self-adjust based on variable or reduced pressure and flow to maintain an effective stream with maximum reach. Manual models feature large handles for easy stream pattern adjustment. 12VDC electric versions include sealed connectors and motors along with a manual override. They have several global certifications and approvals including FM, ATEX, and IECEx. Special models are designed for use in hazardous locations and for gas mitigation applications.

Key Features

Flow rates: 350 – 2000 gpm (1330-7550 LPM)
Calibrated to operate at lower inlet pressures of 75 or 80 psi (5 or 5.5 BAR)
Straight stream, narrow fog (30°) or wide fog (90°)
Durable, lightweight aluminum construction -OR- Brass construction for corrosive and non-corrosive environment applications with some models even having an electroless nickel-plated coating for extra protection
Some models are made of hard coated aluminum with hard anodized finish

Aluminum Models

Model SM-2000E (D)

Flow range of 500-2000 gpm @ 80 psi (1900-7550 LPM @ 5.5 BAR)
Stream pattern remotely controlled via robust electronic motor design
3.5″ Inlet
Deutsch or SAE wiring connections available

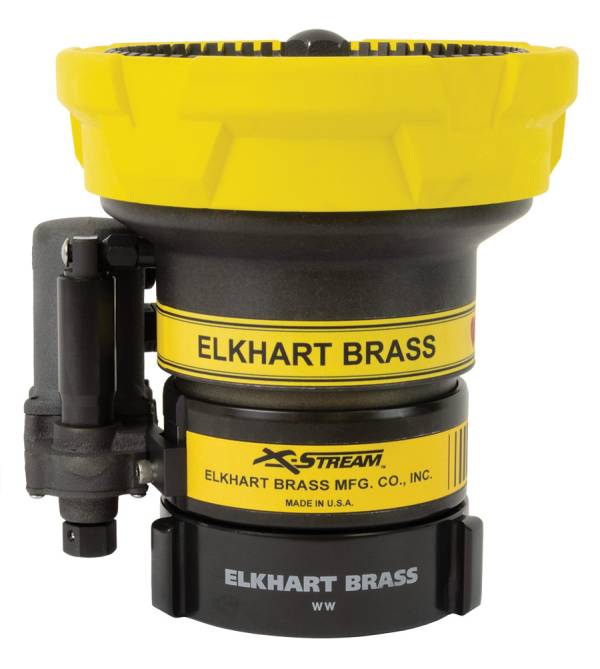

Model SM-1500E (D)

Flow range of 350-1500 gpm @ 75 psi (1330-5700 LPM @ 5 BAR)
Stream pattern remotely controlled via robust electronic motor design
3.5″ Inlet
Deutsch or SAE wiring connections available

Model SM-1250E (D)

Flow range of 350-1250 gpm @ 75 psi (1330-4750 LPM @ 5 BAR)
Stream pattern remotely controlled via robust electronic motor design
2.5″ Inlet
Deutsch or SAE wiring connections available

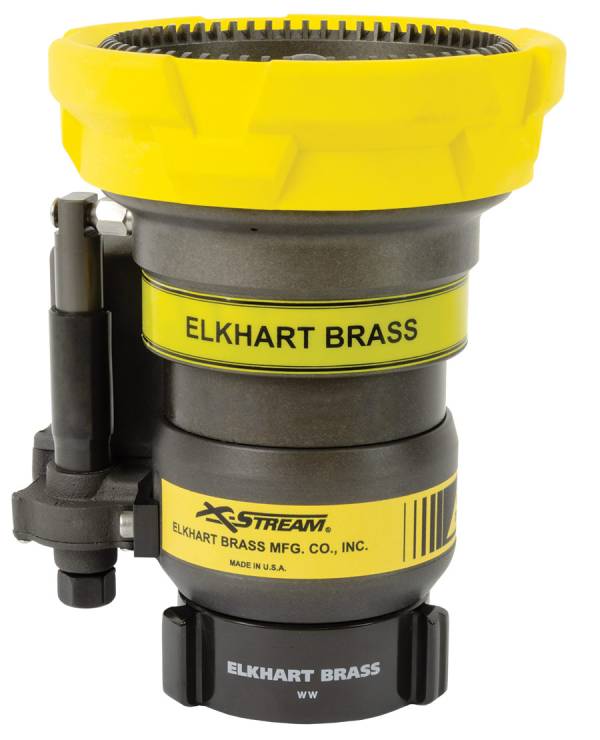

Model SM-1000E (D)

Flow range of 350-1000 gpm @ 75 psi (1330-3800 LPM @ 5 BAR)
Stream pattern remotely controlled via robust electronic motor design
2.5″ Inlet
Deutsch or SAE wiring connections available

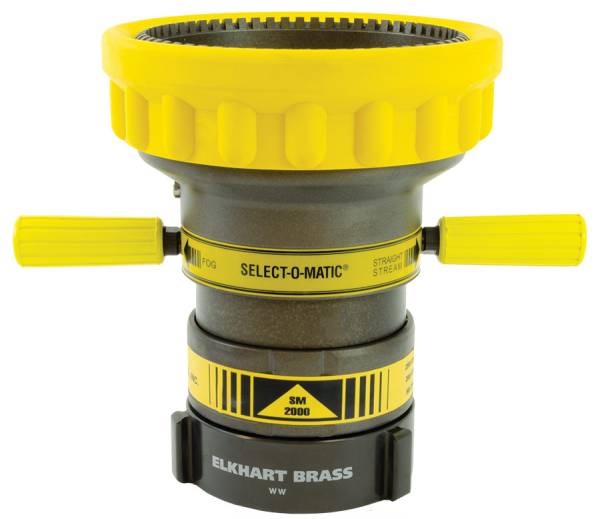

Model SM-2000

Flow range of 500-2000 gpm @ 80 psi (1900-7550 LPM @ 5.5 BAR)
Large handles for manual stream pattern adjustment
3.5″ Inlet

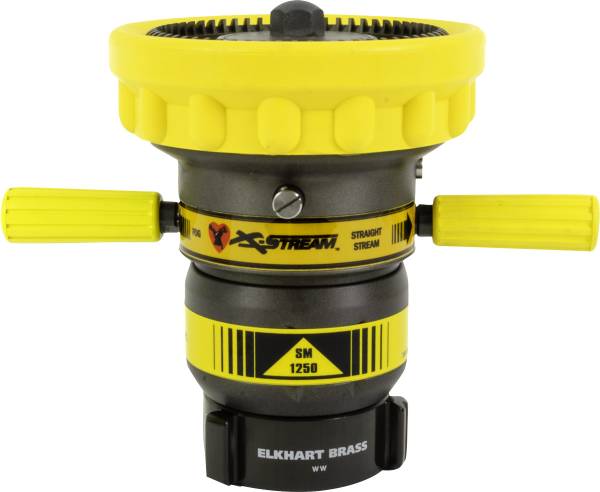

Model SM-1250

Flow range of 350-1250 gpm @ 75 psi (1330-4750 LPM @ 5 BAR)
Large handles for manual stream pattern adjustment
2.5″ Inlet

Brass Models

Model SM-2000HB

Flow range of 500-2000 gpm @ 80 psi (1900-7550 LPM @ 5.5 BAR)
Stream pattern remotely controlled via robust hydraulic actuator
3.5″ inlet

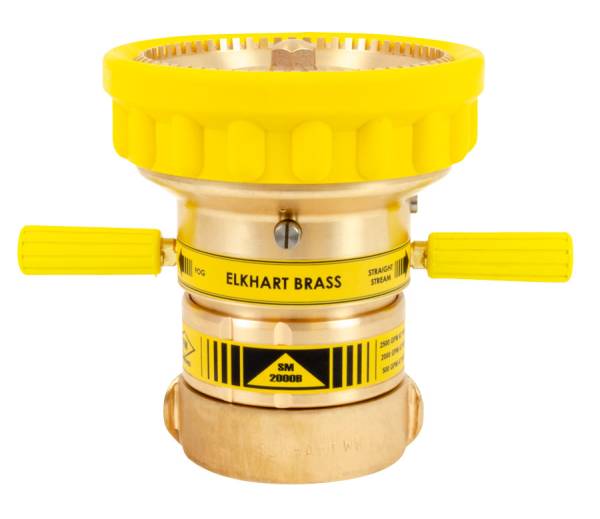

Model SM-2000B

Flow range of 500-2000 gpm @ 80 psi (1900-7550 LPM @ 5.5 BAR)
Large handles for manual stream pattern adjustment
3.5″ inlet
FM Approved

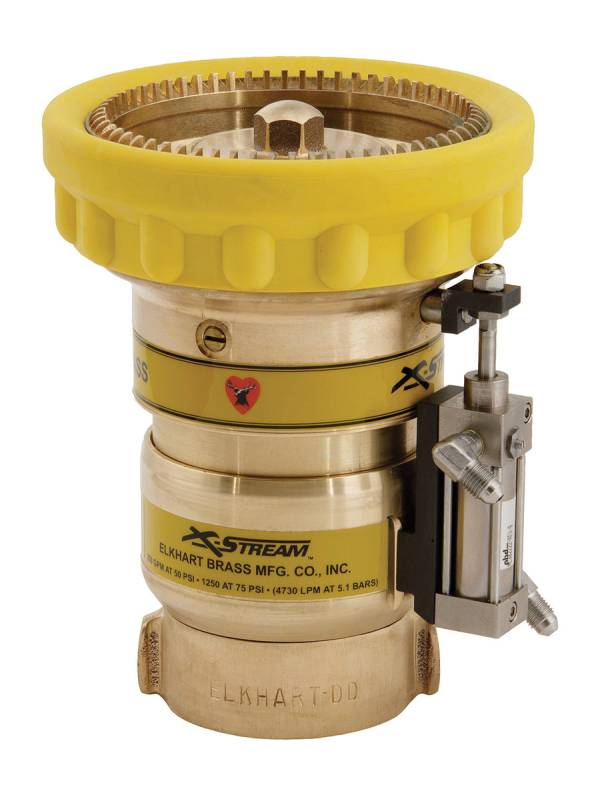

Model SM-1250HB

Flow range of 350-1250 gpm @ 75 psi (1330-4750 LPM @ 5 BAR)
Stream pattern remotely controlled via robust hydraulic actuator
2.5″ inlet or 3.5″ inlet

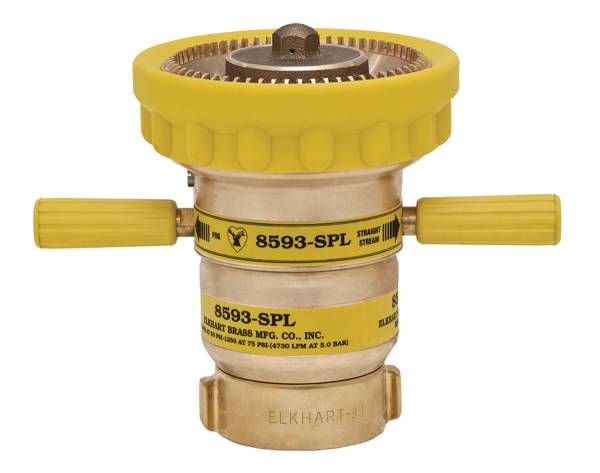

Model SM-1250B

Flow range of 350-1250 gpm @ 75 psi (1330-4750 LPM @ 5 BAR)
Large handles for manual stream pattern adjustment
2.5″ or 3.5″ inlet
FM Approved

Approved for Hazardous Location Use

FM Approved for Class I Div 2 hazardous location rated

or

ATEX certified for Zone 1, ATEX Zone 2, ATEX Zone 21, ATEX Zone 22
IECEx certified Zone 1, IECEx Zone 2, IECEx Zone 21, IECEx Zone 22

Model SM-2000BE-HL

Flow range of 500-2000 gpm @ 80 psi (1900-7550 LPM @ 5.5 BAR)
Stream pattern remotely controlled via robust electronic motor design
3.5″ inlet

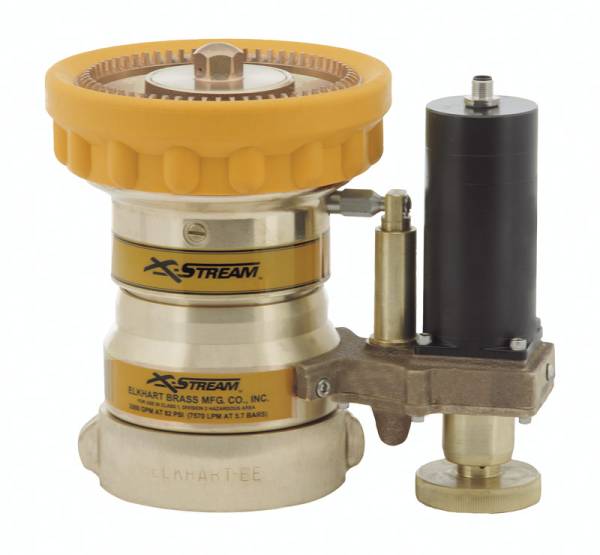

Model SM-1250BE-HL

Flow range of 350-1250 gpm @ 75 psi (1330-4750 LPM @ 5 BAR)
Stream pattern remotely controlled via robust electronic motor design
3.5″ inlet

Gas Mitigation Master Stream Nozzles

Designed for use with a wide 120° fog pattern for gas mitigation applications

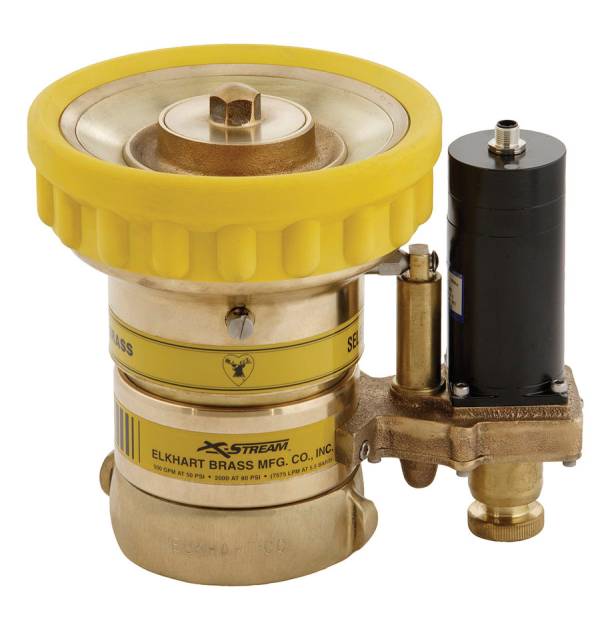

SM-2000BE-HLGM

Flow range of 500-2000 gpm @ 80 psi (1900-7550 LPM @ 5.5 BAR)
Stream pattern remotely controlled via robust electronic motor design
3.5″ inlet

Model SM-1250BE-HLGM

Flow range of 350-1250 gpm @ 75 psi (1330-4750 LPM @ 5 BAR)
Stream pattern remotely controlled via robust electronic motor design
3.5″ inlet
