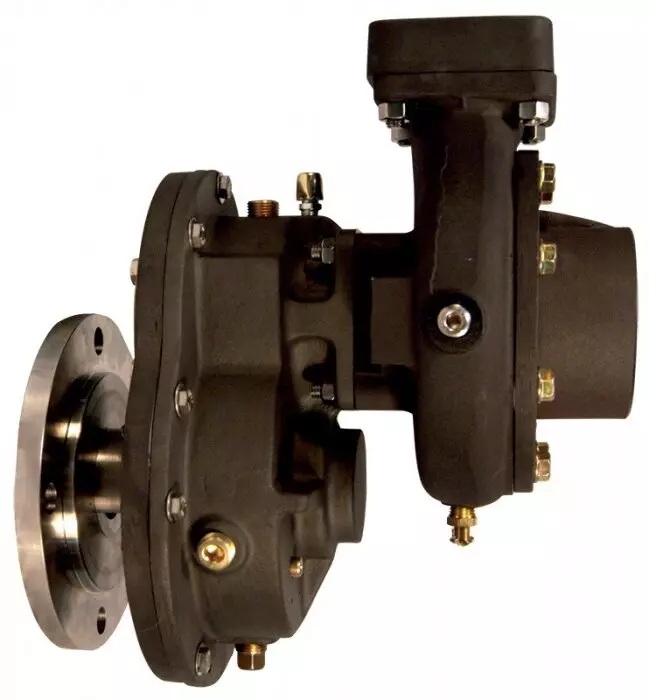

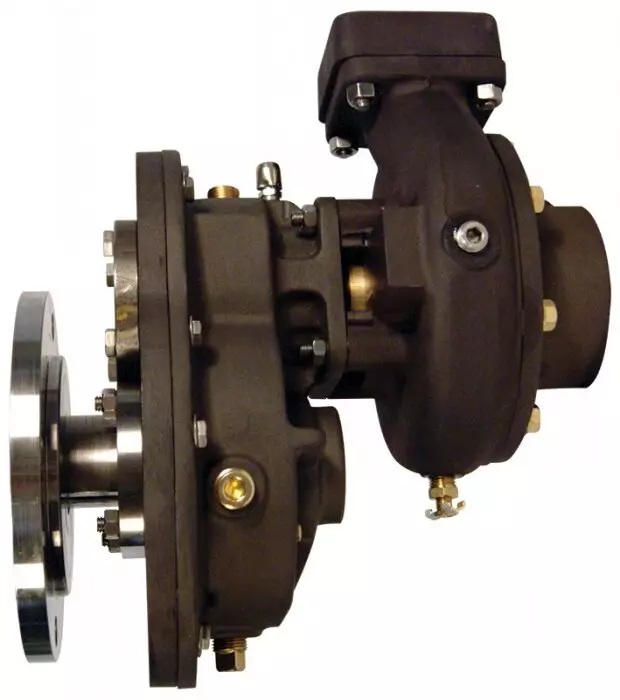

2 1/2AGH

Single Stage, Centrifugal, Hydraulic Driven, Gear Driven

Aluminum alloy casing
Aluminum alloy gear case
Bronze impeller and wear rings
Stainless steel impeller shaft
13T 16/32 involute spline
Heat-treated alloy steel helical gears
Ball bearing construction
SAE “B” hydraulic drive adapter
Mounting angles
Mechanical seal
2-1/2″ NPT suction
2-1/2″ NPT flange on discharge

250 gpm (946 L/M) @ 150 psi (10.3 bar)
175 gpm (662 L/M) @ 200 psi (13.8 bar)
125 gpm (473 L/M) @ 250 psi (17.2 bar)

12″L x 9″W x 14″H 45 lbs. (21 kg)

Applications

Mini Pumper
Tanker
Wildland/Attack Fire
