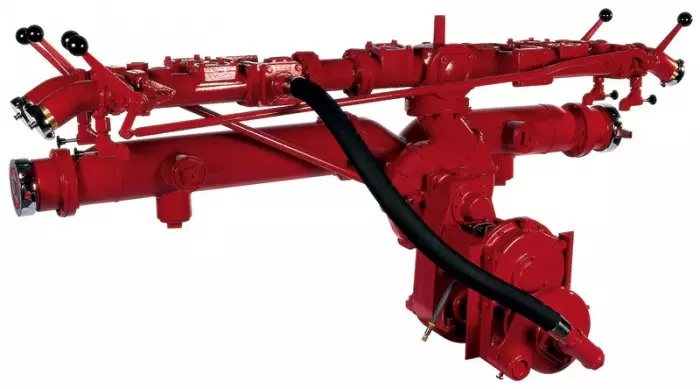

KSPAH 500-1000

Part Number: KSPAH500

Single Stage, Centrifugal, PTO Driven, Midship Mounted, Independent 2nd Stage

Industry’s Longest Warranty

10-year manufacturer’s, 10-year parts and 3-year labor

Air-operated clutch for 2nd stage
1410 input flange and mounting kit

Assembly #2

3” or 4” NPT discharge
5” or 6” NPT, weld flange

Assembly #3

Four 2-1/2″ NH 1/4 turn ball, valves and caps, mounted
Two NH suction adapters, screens, and caps
Six 3″ booster discharge openings as needed

KSPAH 500

500 gpm (1893 L/M) @ 150 psi (10.3 bar)
350 gpm (1325 L/M) @ 200 psi (13.8 bar)
250 gpm (946 L/M) @ 250 psi (17.2 bar)

KSPAH 750

750 gpm (2839 L/M) @ 150 psi (10.3 bar)
525 gpm (1987 L/M) @ 200 psi (13.8 bar)
375 gpm (1419 L/M) @ 250 psi (17.2 bar)

KSPAH 1000

1000 gpm (3785 L/M) @ 150 psi (10.3 bar)
700 gpm (2646 L/M) @ 200 psi (13.8 bar)
500 gpm (1893 L/M) @ 250 psi (17.2 bar)

HIGH PRESSURE

200 gpm (757 L/M) @ 400 psi (27.6 bar)
100 gpm (379 L/M) @ 500 psi (34.5 bar)

42″L x 82″W x 37″H

Applications

Pumper
Pumper Tanker
Rescue Pumper
Wildland/Attack Fire
