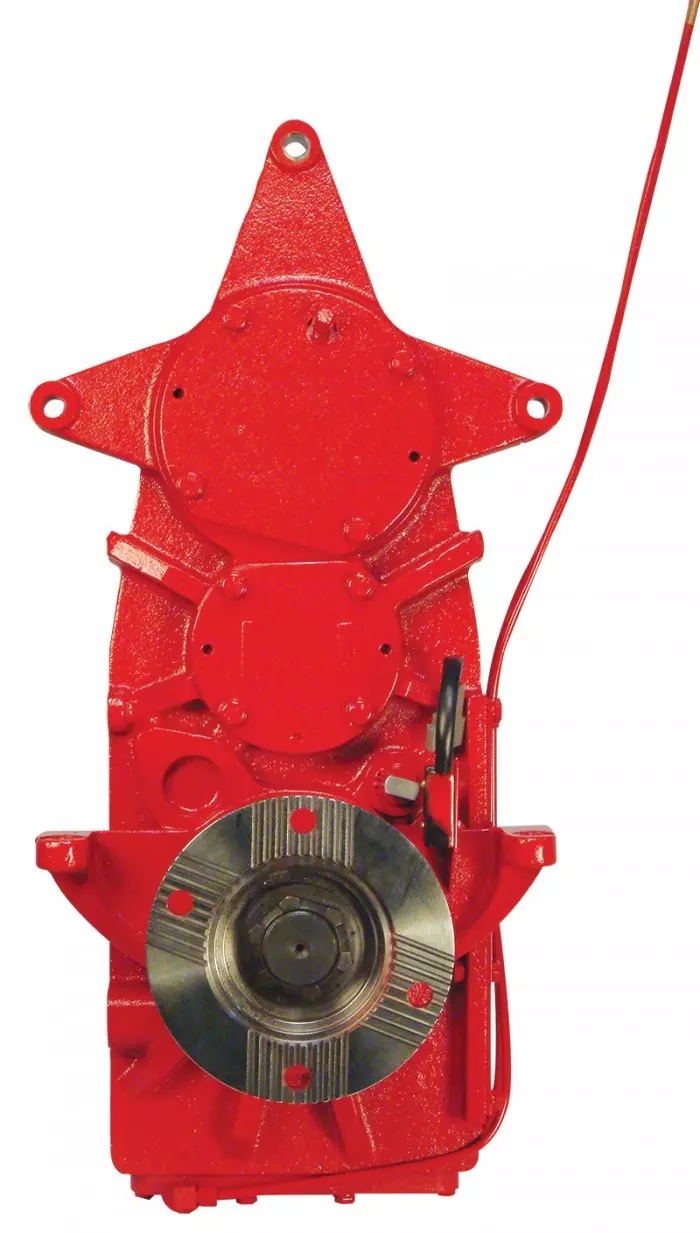

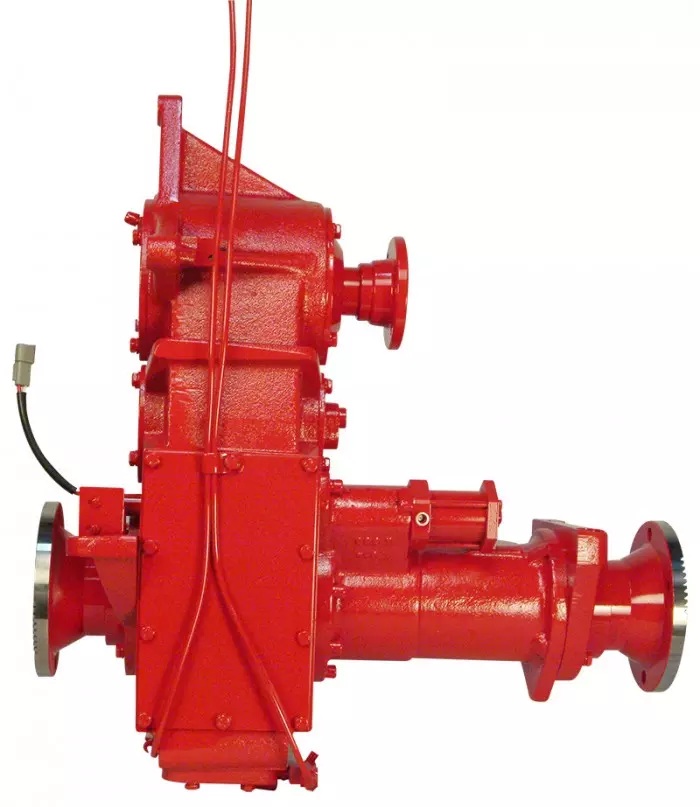

LDM-XHD-PTO – MAGNATRANS™

Part Number: LDM-XHD-PTO

300 HP Split Shaft PTO, Torque Rating

Up to 19,300 ft. lbs.

Industry’s Longest Warranty

10-year manufacturer’s, 10-year parts and 3-year labor

2-1/2″ shaft
Complete mounting kit and lock-on universal joint for front and rear shafts
Air shift
1410 companion flange on output shaft
Opposite engine rotation – Gear ratio: 0.93 to 1 thru 1.27 to 1
Engine rotation – gear ratio: 1:34 to 1 thru 2.67 to1

30″L x 14″W x 27″H 290 lbs. (132 kg)

Electric Shift, Hydraulic drive flange, Parking brake

Applications

Drives rear-mounted pumps
Driveline for foam, generator, and hydraulic systems
Pumper
