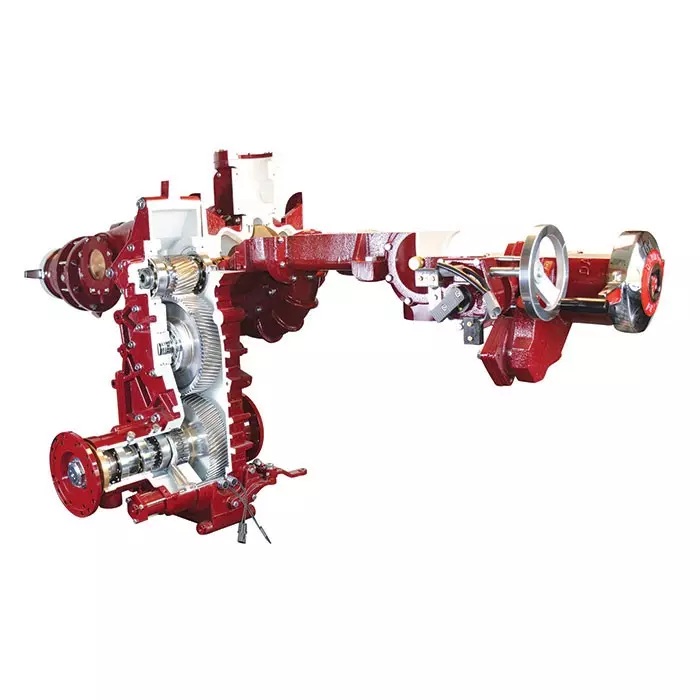

LDMX & LDMX-MT 1000-1750

Part Number: LDMX & LDMX-MT

Industry’s Longest Warranty

  • 10-year manufacturer’s, 10-year parts and 3-year labor

View Documents
Product Inquiry
  • 5″ NPT or weld discharge flange
  • Two 5″ or 6″ NH suction adapters and caps
  • 1610 or 1710 full round yokes standard
  • Air shift
  • 2-1/2″ driveline, 12-1/4″ driveline drop
  • Body width: 70″ – 72″
  • Heat treated gears
  • The LDMX & LDMX-MT offer an economical solution that offers OEMs the ability to design their own discharge manifold
LDMX & LDMX-MT 1000
  • 1000 gpm (3785 L/M) @ 150 psi (10.3 bar)
  • 700 gpm (2646 L/M) @ 200 psi (13.8 bar)
  • 500 gpm (1893 L/M) @ 250 psi (17.2 bar)
LDMX & LDMX-MT 1250
  • 1250 gpm (4731 L/M) @ 150 psi (10.3 bar)
  • 875 gpm (3312 L/M) @ 200 psi (13.8 bar)
  • 625 gpm (2365 L/M) @ 250 psi (17.2 bar)
LDMX & LDMX-MT 1500
  • 1500 gpm (5678 L/M) @ 150 psi (10.3 bar)
  • 1050 gpm (3974 L/M) @ 200 psi (13.8 bar)
  • 750 gpm (2839 L/M) @ 250 psi (17.2 bar)
LDMX & LDMX-MT 1750
  • 1750 gpm (6624 L/M) @ 150 psi (10.3 bar)
  • 1225 gpm (4637 L/M) @ 200 psi (13.8 bar)
  • 875 gpm (3312 L/M) @ 250 psi (17.2 bar)
46″L x 84″W x 32″H 1,150 lbs. (522 kg)
Applications
  • Aerial
  • Pumper
  • Pumper Tanker
  • Rescue Pumper
  • Tanker
