Odin® Cobra XD 200-100

Part Number: Cobra

Engine-driven compressed air foam system.

Darley Model 2-1/2AGE

Single stage
Centrifugal pump
Three independent CAF discharges
Designed to provide up to 250 gpm and pressures up to 250 psi

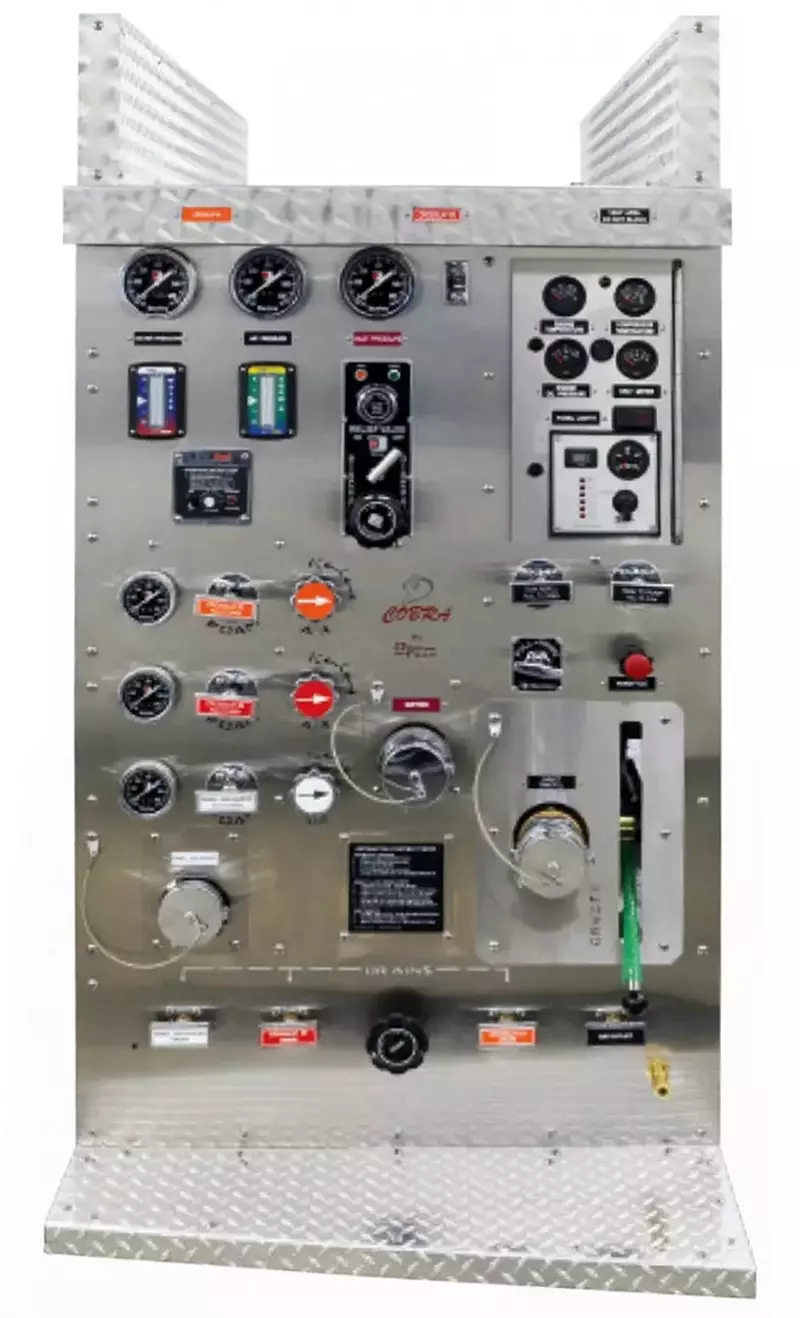

Control Panel

Illuminated
Precision-cut brushed stainless steel panel with all system controls installed

Air Compressor

Rotary screw compressor assembly, ODIN® AutoBalance™ valve, compressor temperature alarm

Frame

Industrial strength lightweight aluminum
Latched door for engine and Foam Proportioner system maintenance access

Lid

Fully assembled
Precision computer cut
Ventilated
Hinged
Gas shock lift struts
Latched

Foam Proportioner System

FoamPro Model 1601 System
FRC water and foam level gauges
Darley pressure relief valve
Auxiliary air outlet
Remote oil drain hose
Tier IV compliant
Digital controller with pressure maintain feature

Water Performance

250 gpm (946 L/M) @ 150 psi (10.4 bar)
175 gpm (662 L/M) @ 200 psi (13.7 bar)
150 gpm (568 L/M) @ 250 psi (17.2 bar) NFPA

Simultaneous Flow

200 gpm (757 L/M) & 100 cfm @ 125 psi (8.6 bar)

Air Performance

130 cfm (1699 L/M) @ 125 psi (8.6 bar)

Simultaneous Flow

220 gpm (833 L/M) & 125 cfm @ 100 psi (6.9 bar)

69”L x 36”W x 72”H 2200 lbs. (998 kg)

Engine Hatz 4H50TIC

73 HP @ 2800 RPM
Direct injection
Exhaust gas turbocharged with intercooler
Externally cooled EGR engine
Remote oil drain.

Applications

Wildland
Quick Attack
Rescue
Skid Unit
