Odin® Mongoose 31HP Gas 46-23

Part Number: Mongoose Gas

Engine-driven compressed air foam system

Darley Model 2BE

Fully adjustable 1-1/2″ CAF discharge mix point
2-1/2″ water discharge
2-1/2″ direct tank fill
2-1/2″ NPT suction inlet
Darley 12v primer
2-1/2″ water and air pressure gauges
Pump drain valve
Stainless steel plumbing

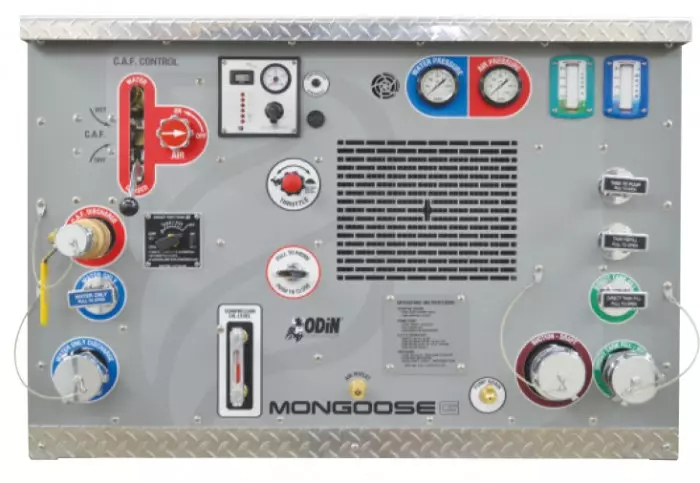

Control Panel

Illuminated
Precision cut cover overlayed panel with integrated labels
Foam injection system controls installed

Air Compressor

Rotary screw encapsulated
Manufacturer approved for flows 60 cfm, @ 150 psi

Frame

Lightweight aluminum

Foam Proportioner System

Darley Fast Foam 50 Class “A” Foam Proportioner

WATER PERFORMANCE

120 gpm (454 L/M) @ 100 psi (6.9 bar)
250 gpm (946 L/M) @ 40 psi (2.7 bar)

SIMULTANEOUS FLOW

46 gpm (174 L/M) & 23 cfm (651 L/M) @ 125 psi (8.6 bar)

AIR PERFORMANCE

50 cfm (1416 L/M) @ 125 psi (8.6 bar)

SIMULTANEOUS FLOW

80 gpm (303 L/M) & 40 cfm (1133 L/M) @ 100 psi (6.9 bar)

36″ (+6″)L x 47 1/4″W x 33″H 875 lbs. (397 kg)

Engine Kawasaki: 31 HP @ 3600 rpm, liquid-cooled, V twin, 2 cylinder gasoline-powered, 12 vdc electric start, multiport digital fuel injected Applications

Wildland
Rescue
Quick Attack
Skid Unit
