Odin® Mongoose Diesel 46-23

Part Number: Mongoose Diesel

Engine driven compressed air foam system

Darley Model 2BE

Fully adjustable 1-1/2″ CAF discharge mix point
2 1/2″ Water discharge
2 1/2″ Direct tank fill
2-1/2″ NPT suction inlet
2-1/2″ Water and air pressure gauges, pump drain valve
Stainless steel plumbing
12 vdc Electric primer system

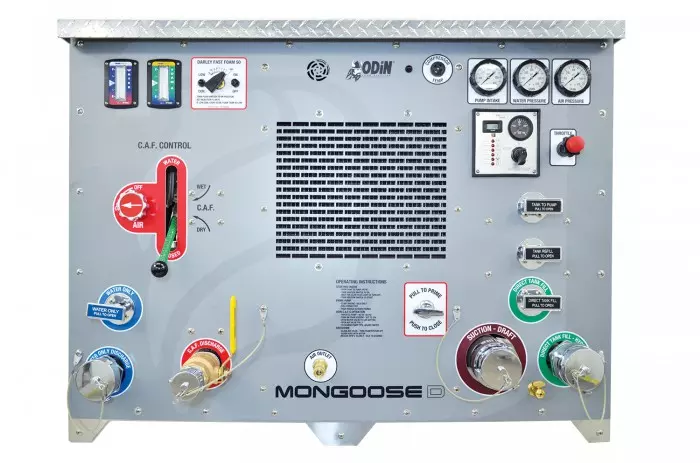

Control Panel

Illuminated
Precision cut-over overlayed panel with integrated labels
Foam injection system controls installed

Air Compressor

Rotary screw encapsulated air compressor
Compressor temperature alarm

Frame

Industrial strength lightweight aluminum

Foam Proportioner System

Darley Fast Foam 50 Class “A” Foam Proportioner

WATER PERFORMANCE

120 gpm (454 L/M) @ 100 psi (6.9 bar)
250 gpm (946 L/M) @ 40 psi (2.7 bar)

SIMULTANEOUS FLOW

46 gpm (174 L/M) & 23 cfm (651 L/M) @ 125 psi (8.6 bar)

AIR PERFORMANCE

50 cfm (1416 L/M) @ 125 psi (8.6 bar)
SIMULTANEOUS FLOW
80 gpm (303 L/M) & 40 cfm (1133 L/M) @ 100 psi (6.9 bar)

44″ (+6”)L x 47 3/4″W x 36″H 1100 lbs. (498 kg)

Engine Kubota: 24.8 HP @ 3600 rpm, water-cooled, 3-cylinder, diesel-powered, 12 vdc electric start Applications

Wildland/Attack Fire Suppression
Rescue
Skid Unit
