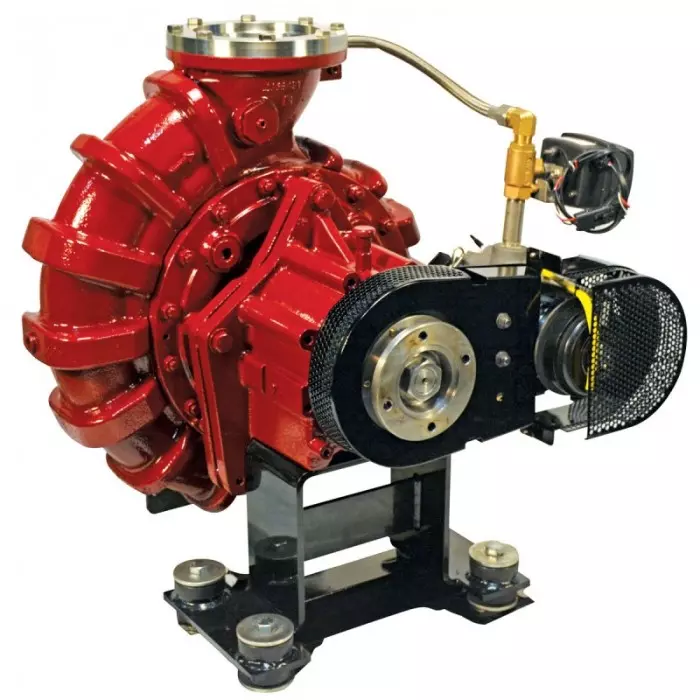

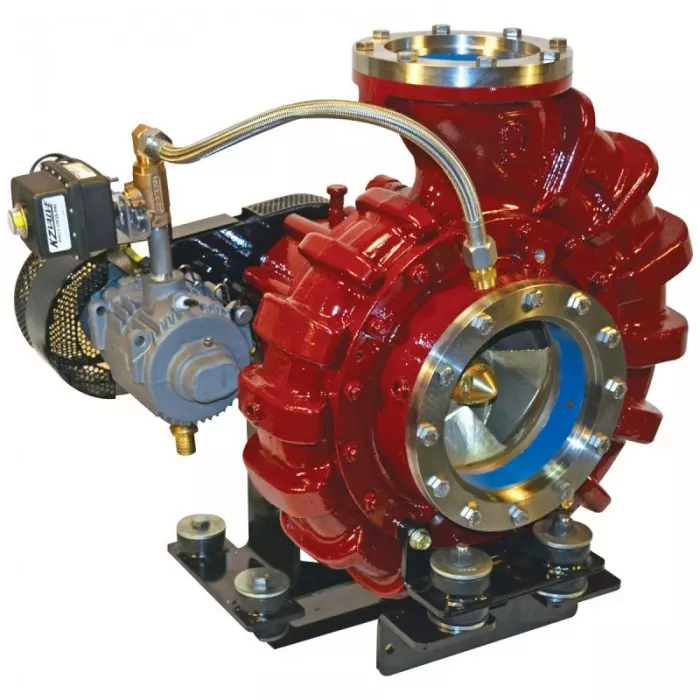

ZSD 2500-3000

Single Stage, Centrifugal, Single Suction Impeller, Direct Drive, PTO Driven

Industry’s Longest Warranty

10-year manufacturer’s, 10-year parts and 3-year labor

6″ weld discharge
8″ NPT or weld suction flange
Rotation: Engine or opposite engine
1550 companion drive flange

ZSD 2500 NFPA FIRE PUMP

2500 gpm (9464 L/M) @ 150 psi (10.3 bar)
1750 gpm (6624 L/M) @ 200 psi (13.8 bar)
1250 gpm (4732 L/M) @ 250 psi (17.2 bar)
Using 1 – 8” or 3 – 6” suction hose

Rated at 2500 gpm for NFPA 1901 fire pump application ZSD 3000 NFPA FIRE PUMP

3000 gpm (11,356 L/M) @ 150 psi (10.3 bar)
2100 gpm (7949 L/M) @ 200 psi (13.8 bar)
1500 gpm (5678 L/M) @ 250 psi (17.2 bar)
Using 2 – 8” or 4 – 6” suction hose

Rated at 3000 gpm for NFPA 1901 fire pump application

23″L x 25.4″W x 29.2″H 555 lbs. (252 kg)

Applications

Industrial
Chemical
Aerial
ARFF
Fire Boat
